Sinch Engage (2.1.0)

Download OpenAPI specification:Download OpenAPI (YAML)Download OpenAPI (JSON)

Sinch Engage Support: support@app.sinch.com URL: https://support.app.sinch.com/hc/en-us/categories/10516535548943-Sinch-Engage-Developer-Guides License: Apache 2.0 Terms of Service

Introduction

The Sinch APIs provide powerful business messaging capabilities across sending, receiving, and processing SMS, MMS, and rich messaging.

All requests to the Sinch REST API must be authenticated, this can either be done using Basic Authentication or by signing with a HMAC signature.

Base URI

The API uses the following base URI

For EU instance please use https://eu.app.api.sinch.com

For APAC instance, use https://au.app.api.sinch.com

Credentials

To access the API, an API key and secret are required.

Sign up for a developer account here to get access

Features

De-Duplication

De-Duplication helps you avoid having to undertake data cleansing before commencing send outs.
It automatically detects and withholds messages deemed to be duplicates through the use of a 24-hour window – if a message is sent to the same number with the same content within a 24hr period, the subsequent message(s) will be withheld and rejected. To enable this, you don't need to make any changes to your application, just an account configuration change by Sinch's support team.

Social Sending

Social Sending permits messages to be sent only during sociable hours - i.e. 8am to 6pm (based on your accounts local time zone - not local time). Messages sent outside of these hours are scheduled to be released during the next social time period. This feature helps businesses avoid send-outs during a time that would be deemed unsuitable by the customer. To enable this, you don't need to make any changes to your application, just an account configuration change by Sinch's support team.

Familiar Sender

Familiar Sender ensures all communication sent to a customer are from the same phone number. This allows businesses to build trust and familiarity with their customers and not confuse them by changing outgoing numbers. To enable this, you don't need to make any changes to your application, just an account configuration change by Sinch's support team.

Character Converter

Characters in a message may not always fall within the GSM-7 supported character set, and when this occurs all outbound messages will be encoded using UCS-2 leading to the customer being double-charged for the SMS. Character Converter can help you avoid being double-charged for your SMS by converting all characters into the GSM-7 format ensuring you always get the maximum characters into an SMS. Bear in mind, this will downgrade all your unicode characters so for instance, your emojis will be translated into a string of unknown characters (eg: �). To enable this, you don't need to make any changes to your application, just an account configuration change by Sinch's support team.

Basic Authentication

Every request requires an Authorization header in the following format:

Authorization: Basic Base64(api_key:api_secret)

Where the header consists of the Basic keyword followed by your Basic Authentication api_key and api_secret that you have been supplied by support, separated with a colon (:) which is then Base64 encoded.

Example request with Basic Authentication

POST /v1/messages HTTP/1.1
Host: eu.app.api.sinch.com
Accept: application/json
Content-Type: application/json
Authorization: Basic dGhpc2lzYWtleTp0aGlzaXNhc2VjcmV0Zm9ybW1iYXNpY2F1dGhyZXN0YXBp
{
  "messages": [
    {
      "content": "Hello World",
      "destination_number": "+61491570156",
      "format": "SMS"
    }
  ]
}

Note: spaces are used as indentation in the body of the above request.

HMAC Authentication

Every request requires an Authorization header in the following formats: For a request with a request body:

Authorization: hmac username="<API KEY>", algorithm="hmac-sha256", headers  ="Date Content-MD5 request-line", signature="<SIGNATURE>"

For a request without a request body:

Authorization: hmac username="<API KEY>", algorithm="hmac-sha256", headers="Date request-line", signature="<SIGNATURE>"

To create this header

Step 1

Add a Date header to the request using the current date time in RFC7231 Section 7.1.1.2 format

Step 2

If the request has a body, add a header called Content-MD5 where the value of this header is an MD5 hash of the request body, otherwise this header is not required

Step 3

Create a signing string by concatenating the Date header, the Content-MD5 header (if set) and the request line with line breaks:

Date: Sat, 30 Jul 2016 05:13:23 GMT\nContent-MD5: 10fd4feab20d38432480c07301e49616\nPOST /v1/messages HTTP/1.1

or

Date: Sat, 30 Jul 2016 05:13:23 GMT\nGET /v1/messages/404b941b-2a29-469f-b114-9ea3e16bbe18 HTTP/1.1

Step 4

Create a SHA256 HMAC hash using the signing string and the secret key (both converted to bytes using UTF-8) HMAC-SHA256(signing string, secret)

Step 5

Base64 encode the HMAC hash and include it as the signature in the Authorization header

Example request with body

POST /v1/messages HTTP/1.1
Host: eu.app.api.sinch.com
Accept: application/json
Content-Type: application/json
Date: Sat, 30 Jul 2016 05:18:52 GMT
Authorization: hmac username="uCXUdoogNfCsehEClbO2", algorithm="hmac-sha256", headers="Date Content-MD5 request-line", signature="Ia4G5lkhH/3NDYpix+8ZHUnp6bA="
Content-MD5: 5407644fa83bec240dede971307e0cad
Content-Length: 133
{
  "messages": [
    {
      "content": "Hello World",
      "destination_number": "+61491570156",
    "format": "SMS"
    }
  ]
}

Note: spaces are used as indentation in the body of the above request.

Example request without body

GET /v1/messages/404b941b-2a29-469f-b114-9ea3e16bbe18 HTTP/1.1
Host: eu.app.api.sinch.com
Accept: application/json
Date: Sat, 30 Jul 2016 05:18:52 GMT
Authorization: hmac username="uCXUdoogNfCsehEClbO2", algorithm="hmac-sha256", headers="Date request-line", signature="NTUwMjUwNTVmZGYzZTIxODMyYjc1ZmM3M2EwZWQ1NzA3NzA4ZTZjNw==" ```

Sub-accounts

Performing actions on behalf of sub-accounts

Using API keys at the parent account level, you can perform actions on behalf of a sub-account.

This feature is supported by the Messages, Replies, Delivery Reports and Webhooks APIs.

To do this include a header key Account with the sub-account ID as the value. For example: Account: mySubAccount

Example request with Sending from sub-accounts

POST /v1/messages HTTP/1.1
Host: eu.app.api.sinch.com
Accept: application/json
Content-Type: application/json
Authorization: Basic dGhpc2lzYWtleTp0aGlzaXNhc2VjcmV0Zm9ybW1iYXNpY2F1dGhyZXN0YXBp
Account: SubAccount
{
  "messages": [
    {
      "content": "Hello World",
      "destination_number": "+61491570156",
      "delivery_report": true
    }
  ]
}

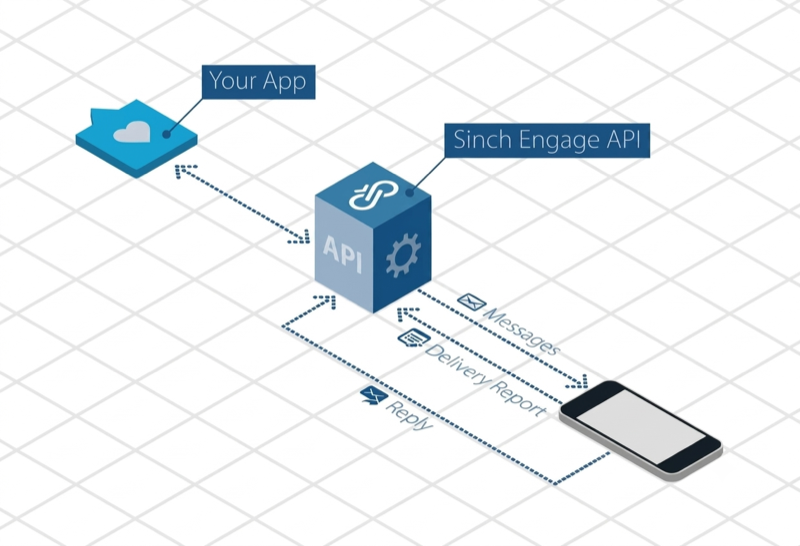

Messages

The Sinch Messages API provides a number of endpoints for building powerful two-way messaging applications. The Messages API provides access to three main resources:

  • Messages - Messages delivered from an application to a handset.
  • Delivery Reports - Real time reports on the delivery status of a message. As a message is processed, it's status may change several times before it is finally delivered to a handset.
  • Replies - Messages sent from a handset to an application. These messages are typically a reply to a previously sent message. Message Flow

Get message status

Retrieve the current status of a message using the message ID returned in the send messages endpoint.

A successful request to the get message status endpoint will return a response body as follows:


{
    "format": "SMS",
    "content": "My first message!",
    "metadata": {
        "key1": "value1",
        "key2": "value2"
    },
    "message_id": "877c19ef-fa2e-4cec-827a-e1df9b5509f7",
    "callback_url": "https://my.callback.url.com",
    "delivery_report": true,
    "destination_number": "+61401760575",
    "scheduled": "2016-11-03T11:49:02.807Z",
    "source_number": "+61491570157",
    "source_number_type": "INTERNATIONAL",
    "message_expiry_timestamp": "2016-11-03T11:49:02.807Z",
    "status": "enroute"
}

The status property of the response indicates the current status of the message. See the Delivery Reports section of this documentation for more information on message statuses. The expiry date for getting an entity is 45 days.

Note: If an invalid or nonexistent message ID parameter is specified in the request, then a HTTP 404 Not Found response will be returned

Authorizations:
basic_authhmac_auth
path Parameters
messageId
required
string
Example: 389dc1a8-62a4-4110-ba61-af94806c006f

36 character UUID.

Responses

Request samples

string messageId = "messageId2";

try
{
    GetMessageStatusResponse result = messages.GetMessageStatusAsync(messageId).Result;
}
catch (APIException e){};

Response samples

Content type
application/json
{
  • "callback_url": "https://my.url.com",
  • "content": "Hello world!",
  • "destination_number": "+61491570156",
  • "delivery_report": false,
  • "format": "SMS",
  • "message_expiry_timestamp": "11/3/2016 11:49:02 AM",
  • "metadata": { },
  • "scheduled": "11/3/2016 11:49:02 AM",
  • "source_number": "+61491570156",
  • "source_number_type": "INTERNATIONAL",
  • "message_id": "d7d9d9fd-478f-40e6-b651-49b7f19878a2",
  • "status": "enroute"
}

Cancel scheduled message

Cancel a scheduled message that has not yet been delivered.

A scheduled message can be cancelled by updating the status of a message from scheduled to cancelled. This is done by submitting a PUT request to the messages endpoint using the message ID as a parameter (the same endpoint used above to retrieve the status of a message). The expiry date for getting an entity is 45 days.

The body of the request simply needs to contain a status property with the value set to cancelled.


{
    "status": "cancelled"
}

Note: Only messages with a status of scheduled can be cancelled. If an invalid or nonexistent message ID parameter is specified in the request, then a HTTP 404 Not Found response will be returned

Authorizations:
basic_authhmac_auth
path Parameters
messageId
required
string
Example: 389dc1a8-62a4-4110-ba61-af94806c006f

36 character UUID.

Request Body schema: application/json
required

Parameters of a message to change.

status
required
string

Must be set to cancelled.

Responses

Request samples

Content type
application/json
{
  • "status": "cancelled"
}

Response samples

Content type
application/json
{
  • "message": "Request failed to parse correctly. Please ensure input is valid and try again.",
  • "details": [
    ]
}

Send messages

Submit one or more (up to 100 per request) SMS, MMS or text to voice messages for delivery.

The most basic message has the following structure:


{
    "messages": [
        {
            "content": "My first message!",
            "destination_number": "+61491570156"
        }
    ]
}

More advanced delivery features can be specified by setting the following properties in a message:

  • callback_url A URL can be included with each message to which

Webhooks will be pushed to via a HTTP POST request. Webhooks will be sent if and when the status of the message changes as it is processed (if the delivery report property of the request is set to true) and when replies are received. Specifying a callback URL is optional.

  • content The content of the message. This can be a Unicode string, up to 5,000 characters long. Message content is required.

  • delivery_report Delivery reports can be requested with each

message. If delivery reports are requested, a webhook will be submitted to the callback_url property specified for the message (or to the webhooks) specified for the account every time the status of the message changes as it is processed. The current status of the message can also be retrieved via the Delivery Reports endpoint of the Messages API. Delivery reports are optional and by default will not be requested.

  • destination_number The destination number the message should be

delivered to. This should be specified in E.164 international format. For information on E.164, please refer to http://en.wikipedia.org/wiki/E.164. A destination number is required.
⚠️ IMDA TLS Compliance Notice: From 1 April 2026, all requests sending messages to Singapore (+65) numbers must use TLS 1.3 or higher. Requests using an older TLS version will be rejected with HTTP 422 Unprocessable Entity.

  • format The format specifies which format the message will be

sent as, SMS (text message), MMS (multimedia message) or TTS (text to speech). With TTS format, we will call the destination number and read out the message using a computer generated voice. Specifying a format is optional, by default SMS will be used.

  • source_number_type If a source number is specified, the type of

source number may also be specified. This is recommended when using a source address type that is not an internationally formatted number, available options are INTERNATIONAL, ALPHANUMERIC or SHORTCODE. Specifying a source number type is only valid when the source_number parameter is specified and is optional. If a source number is specified and no source number type is specified, the source number type will be inferred from the source number, however this may be inaccurate.

  • source_number[optional] Specify a source number to be used. Refer to the section below for more information on source numbers.

⚠️ The number or sender ID must be registered to your account (from 1-Mar-2024).

Source number (sender ID)

There are several options for the number or sender ID that will show as the source of an outbound message. Some things to note: - If you do not specify a source number, the message will be sent with the default number for your account. - The default may be a number you have purchased from us - such as a dedicated number, a 10-digit longcode or toll-free number (US/CA), or a shortcode. Log into the web portal to manage your numbers. - If your account has multiple numbers, you can specify which source number to use in the request. - If your account does not have a number, your message may be sent using our shared number pool (in certain countries only) - Alpha tag: In some countries (AU, GB, some others), you may be able to send using an alpha tag - text that represents your brand of business. Before using an alpha tag, you must register it in the Numbers section of the web portal. - Other numbers: You may use numbers that you own as the source number, but you must register them in the Numbers section of the web portal to confirm you have a right to use the number. If you need to register a large number of source numbers/sender IDs, consider using our Source Address API

⚠️ If you specify a source_number that is not registered to your account, the message may fail to send, or may be sent with an alternative number.

  • media The media is used to specify a list of URLs of the media file(s) that you are trying to send.

Supported file formats include png, jpeg and gif. format parameter must be set to MMS for this to work.

  • subject The subject field is used to denote subject of the MMS

message and has a maximum size of 64 characters long. Specifying a subject is optional.

  • scheduled A message can be scheduled for delivery in the future

by setting the scheduled property. The scheduled property expects a date time specified in ISO 8601 format. The scheduled time must be provided in UTC and is optional. If no scheduled property is set, the message will be delivered immediately.

  • message_expiry_timestamp A message expiry timestamp can be

provided to specify the latest time at which the message should be delivered. If the message cannot be delivered before the specified message expiry timestamp elapses, the message will be discarded. Specifying a message expiry timestamp is optional.

  • metadata Metadata can be included with the message which will

then be included with any delivery reports or replies matched to the message. This can be used to create powerful two-way messaging applications without having to store persistent data in the application. Up to 10 key / value metadata data pairs can be specified in a message. Each key can be up to 100 characters long, and each value up to 256 characters long. Specifying metadata for a message is optional.

The response body of a successful POST request to the messages endpoint will include a messages property which contains a list of all messages submitted. The list of messages submitted will reflect the list of messages included in the request, but each message will also contain two new properties, message_id and status. The returned message ID will be a 36 character UUID which can be used to check the status of the message via the Get Message Status endpoint. The status of the message which reflect the status of the message at submission time which will always be queued. See the Delivery Reports section of this documentation for more information on message statuses.

Note: when sending multiple messages in a request, all messages must be valid for the request to be successful. If any messages in the request are invalid, no messages will be sent.

Authorizations:
basic_authhmac_auth
Request Body schema: application/json
required

Request body.

required
Array of objects (Message)

List of messages.

Responses

Request samples

Content type
application/json
{
  • "messages": [
    ]
}

Response samples

Content type
application/json
{}

Delivery Reports

If a callback URL is specified in the submit message request, then changes to the message status, replies received in response to the message or delivery reports received for the message will be pushed via a HTTP POST request. An alternative to delivery reports via a callback URL is custom webhooks using the webhooks management API.

All notifications are JSON encoded and the request expects to receive a response in the HTTP 200 range. If a valid response isn't received the request will be retried in an exponentially backing off fashion.

Delivery Reports may carry an additional charge. For pricing, please contact your Account Manager or Support Team (support@app.sinch.com).

To include billing units in your delivery receipts via Webhooks, ensure that the switch "Enable billing units in Delivery Reports and Callbacks" is enabled in the API settings of your account.

For delivery reports or changes in the status of a message, the POST request to the specified URL will be as follows:

Note, multiple delivery report notifications will be received for a single message.

{
  "callback_url":"http://mockbin.org/bin/ac52ebd4-eca1-4c86-bf38-4dce79633906",
  "delivery_report_id":"693e87f2-a553-4281-9ffe-ddf04cbc4bf3",
  "source_number":"+61491570156",
  "date_received":"2016-11-03T11:49:02.807Z",
  "status":"delivered",
  "delay":0,
  "billing_units":1,
  "submitted_date":"2016-11-03T11:49:01.551Z",
  "original_text":"Hello world!",
  "message_id":"389dc1a8-62a4-4110-ba61-af94806c006f",
  "vendor_account_id":{
    "vendor_id":"SinchEU",
    "account_id":"MyAccount"
  },
  "error_code":"220",
  "metadata":{
    "key":"value"
  }
}

The properties included in the notification are as follows:

  • Callback URL: The URL specified as the callback URL in the original submit message request.

  • Delivery Report ID: A unique ID for the delivery report that this notification represents.

  • Source Number: The destination address of the original message.

  • Date Received: The date and time at which this notification was generated in UTC.

  • Status: The status of the message as indicated by this delivery report. The status field can be one of the following values:

    • enroute: Message has been received by the gateway and is being processed (or waiting to be processed).

    • submitted: Message has been submitted to a provider/carrier for delivery.

    • delivered: Message delivery has been confirmed by the provider, including to the handset (where possible).

    • expired: The message has expired.

    • rejected: The message will not be delivered - permanent failure. Reasons may include usage limit exceeded, insufficient credit, number blocked, or content filtered

    • failed: The message has failed. Reasons may include no active routes to destination or undeliverable by downstream provider.

  • Delay: Deprecated, no longer in use

  • Billing Units: The number of billing units charged for the message.

  • Submitted Date: Date time status of the message changed in UTC. For a delivered DR this may indicate the time at which the message was received on the handset.

  • Original Text: Text of the original message.

  • Message ID: ID of the original message.

  • Vendor Account ID: The account used to submit the original message. The vendor will always be SinchEU

  • Error Code: A status code which provides additional information about the message status:

    • 101: Message being processed by the gateway.

    • 102: Message is being rerouted to a different provider after failing via the first provider.

    • 151: Message held for screening.

    • 200: Message submitted to downstream provider for delivery.

    • 210: Message accepted by downstream provider.

    • 211: Message is enroute for delivery by provider.

    • 212: Message submitted. Delivery pending.

    • 213: Message scheduled for delivery by downstream provider.

    • 220: Message delivered.

    • 221: Message delivered to the handset.

    • 320: Message validity period has expired (prior to submission).

    • 401: Message validity period has expired (before delivery).

    • 301: Usage threshold reached. Message discarded.

    • 302: Destination address blocked. Message discarded.

    • 303: Source address blocked. Message discarded.

    • 304: Message dropped. Contact support.

    • 305: Message discarded due to duplicate detection.

    • 402: Message rejected by downstream provider.

    • 403: Message skipped by downstream provider.

    • 410: Invalid source address.

    • 411: Invalid destination address.

    • 412: Destination address blocked.

    • 413: SMS service unavailable on destination.

    • 414: Destination unreachable.

    • 330: Gateway failure.

    • 331: Message discarded.

    • 332: No available route to destination.

    • 333: Source address unsupported for this destination.

    • 400: Message failed; undeliverable.

    • 405: Message cancelled or deleted by provider.

Check delivery reports

Check for any delivery reports that have been received. Delivery reports are a notification of the change in status of a message as it is being processed. Each request to the check delivery reports endpoint will return any delivery reports received that have not yet been confirmed using the confirm delivery reports endpoint. A response from the check delivery reports endpoint will have the following structure:

{
    "delivery_reports": [
        {
            "callback_url": "https://my.callback.url.com",
            "delivery_report_id": "01e1fa0a-6e27-4945-9cdb-18644b4de043",
            "source_number": "+61491570157",
            "date_received": "2017-05-20T06:30:37.642Z",
            "status": "enroute",
            "delay": 0,
            "billing_units": 1,
            "submitted_date": "2017-05-20T06:30:37.639Z",
            "original_text": "My first message!",
            "message_id": "d781dcab-d9d8-4fb2-9e03-872f07ae94ba",
            "vendor_account_id": {
                "vendor_id": "SinchEU",
                "account_id": "MyAccount"
            },
            "metadata": {
                "key1": "value1",
                "key2": "value2"
            }
        },
        {
            "callback_url": "https://my.callback.url.com",
            "delivery_report_id": "0edf9022-7ccc-43e6-acab-480e93e98c1b",
            "source_number": "+61491570158",
            "date_received": "2017-05-21T01:46:42.579Z",
            "status": "enroute",
            "delay": 0,
            "billing_units": 1,
            "submitted_date": "2017-05-21T01:46:42.574Z",
            "original_text": "My second message!",
            "message_id": "fbb3b3f5-b702-4d8b-ab44-65b2ee39a281",
            "vendor_account_id": {
                "vendor_id": "SinchEU",
                "account_id": "MyAccount"
            },
            "metadata": {
                "key1": "value1",
                "key2": "value2"
            }
        }
    ]
}

Each delivery report will contain details about the message, including any metadata specified and the new status of the message (as each delivery report indicates a change in status of a message) and the timestamp at which the status changed. Every delivery report will have a unique delivery report ID for use with the confirm delivery reports endpoint. Note: The source number and destination number properties in a delivery report are the inverse of those specified in the message that the delivery report relates to. The source number of the delivery report is the destination number of the original message. Subsequent requests to the check delivery reports endpoint will return the same delivery reports and a maximum of 100 delivery reports will be returned in each request. Applications should use the confirm delivery reports endpoint in the following pattern so that delivery reports that have been processed are no longer returned in subsequent check delivery reports requests. The expiry date for getting an entity is 45 days.

  1. Call check delivery reports endpoint
  2. Process each delivery report
  3. Confirm all processed delivery reports using the confirm delivery reports endpoint Note: It is recommended to use the Webhooks feature to receive reply messages rather than polling the check delivery reports endpoint.
Authorizations:
basic_authhmac_auth

Responses

Request samples

deliveryReportsController.checkDeliveryReportsAsync(new APICallBack<CheckDeliveryReportsResponse>() {
    public void onSuccess(HttpContext context, CheckDeliveryReportsResponse response) {
        // TODO success callback handler
    }
    public void onFailure(HttpContext context, Throwable error) {
        // TODO failure callback handler
    }
});

Response samples

Content type
application/json
{
  • "delivery_reports": [
    ]
}

Confirm delivery reports as received

Mark a delivery report as confirmed so it is no longer return in check delivery reports requests. The confirm delivery reports endpoint is intended to be used in conjunction with the check delivery reports endpoint to allow for robust processing of delivery reports. Once one or more delivery reports have been processed, they can then be confirmed using the confirm delivery reports endpoint so they are no longer returned in subsequent check delivery reports requests. The confirm delivery reports endpoint takes a list of delivery report IDs as follows:

{
    "delivery_report_ids": [
        "011dcead-6988-4ad6-a1c7-6b6c68ea628d",
        "3487b3fa-6586-4979-a233-2d1b095c7718",
        "ba28e94b-c83d-4759-98e7-ff9c7edb87a1"
    ]
}

The expiry date for getting an entity is 45 days. Up to 100 delivery reports can be confirmed in a single confirm delivery reports request.

Authorizations:
basic_authhmac_auth
Request Body schema: application/json
required

Delivery reports to confirm as received.

delivery_report_ids
required
Array of strings <uuid> <= 100 items [ items <uuid > ]

Array of unique IDs for the delivery report that this notification represents

Responses

Request samples

Content type
application/json
{
  • "delivery_report_ids": [
    ]
}

Response samples

Content type
application/json
{
  • "message": "Request failed to parse correctly. Please ensure input is valid and try again.",
  • "details": [
    ]
}

Replies

Endpoints for checking and confirming inbound message replies (MO) received by your account.

Check replies

Check for any replies that have been received. Replies are messages that have been sent from a handset in response to a message sent by an application or messages that have been sent from a handset to a inbound number associated with an account, known as a dedicated inbound number (contact support@app.sinch.com for more information on dedicated inbound numbers). Each request to the check replies endpoint will return any replies received that have not yet been confirmed using the confirm replies endpoint. A response from the check replies endpoint will have the following structure:

{
    "replies": [
        {
            "metadata": {
                "key1": "value1",
                "key2": "value2"
            },
            "message_id": "877c19ef-fa2e-4cec-827a-e1df9b5509f7",
            "reply_id": "a175e797-2b54-468b-9850-41a3eab32f74",
            "date_received": "2016-12-07T08:43:00.850Z",
            "callback_url": "https://my.callback.url.com",
            "destination_number": "+61491570156",
            "source_number": "+61491570157",
            "vendor_account_id": {
                "vendor_id": "SinchEU",
                "account_id": "MyAccount"
            },
            "content": "My first reply!"
        },
        {
            "metadata": {
                "key1": "value1",
                "key2": "value2"
            },
            "message_id": "8f2f5927-2e16-4f1c-bd43-47dbe2a77ae4",
            "reply_id": "3d8d53d8-01d3-45dd-8cfa-4dfc81600f7f",
            "date_received": "2016-12-07T08:43:00.850Z",
            "callback_url": "https://my.callback.url.com",
            "destination_number": "+61491570157",
            "source_number": "+61491570158",
            "vendor_account_id": {
                "vendor_id": "SinchEU",
                "account_id": "MyAccount"
            },
            "content": "My second reply!"
        }
    ]
}

Each reply will contain details about the reply message, as well as details of the message the reply was sent in response to, including any metadata specified. Every reply will have a reply ID to be used with the confirm replies endpoint. Note: The source number and destination number properties in a reply are the inverse of those specified in the message the reply is in response to. The source number of the reply message is the same as the destination number of the original message, and the destination number of the reply message is the same as the source number of the original message. If a source number wasn't specified in the original message, then the destination number property will not be present in the reply message. Subsequent requests to the check replies endpoint will return the same reply messages and a maximum of 100 replies will be returned in each request. Applications should use the confirm replies endpoint in the following pattern so that replies that have been processed are no longer returned in subsequent check replies requests. The expiry date for getting an entity is 45 days.

  1. Call check replies endpoint
  2. Process each reply message
  3. Confirm all processed reply messages using the confirm replies endpoint Note: It is recommended to use the Webhooks feature to receive reply messages rather than polling the check replies endpoint.
Authorizations:
basic_authhmac_auth

Responses

Request samples

repliesController.checkRepliesAsync(new APICallBack<CheckRepliesResponse>() {
    public void onSuccess(HttpContext context, CheckRepliesResponse response) {
        // TODO success callback handler
    }
    public void onFailure(HttpContext context, Throwable error) {
        // TODO failure callback handler
    }
});

Response samples

Content type
application/json
{
  • "replies": [
    ]
}

Confirm replies as received

Mark a reply message as confirmed so it is no longer returned in check replies requests. The confirm replies endpoint is intended to be used in conjunction with the check replies endpoint to allow for robust processing of reply messages. Once one or more reply messages have been processed they can then be confirmed using the confirm replies endpoint so they are no longer returned in subsequent check replies requests. The confirm replies endpoint takes a list of reply IDs as follows:

{
    "reply_ids": [
        "011dcead-6988-4ad6-a1c7-6b6c68ea628d",
        "3487b3fa-6586-4979-a233-2d1b095c7718",
        "ba28e94b-c83d-4759-98e7-ff9c7edb87a1"
    ]
}

The expiry date for getting an entity is 45 days. Up to 100 replies can be confirmed in a single confirm replies request.

Authorizations:
basic_authhmac_auth
Request Body schema: application/json
required

Request body.

reply_ids
required
Array of strings <uuid> <= 100 items [ items <uuid > ]

The UUID of the reply to be confirmed (note: not the UUID of the message it is in response to)

Responses

Request samples

Content type
application/json
{
  • "reply_ids": [
    ]
}

Response samples

Content type
application/json
{
  • "message": "Request failed to parse correctly. Please ensure input is valid and try again.",
  • "details": [
    ]
}

Source Address

The source address API provides several endpoints for you to request an SMS sender ID and track its approval status.

What is Trusted Sender ID?

Simply put, a sender ID is whatever you send a text message from. This is typically either a phone number, or a string of alphanumeric characters (commonly referred to as an "Alpha Tag").

With regulations surrounding SMS becoming much stricter all over the world in an effect to combat scam SMS messages, Sinch is working on "Trusted Sender ID" a concept that allows customers to request a Sender ID and have it verified.

Currently, Trusted Sender ID supports two types of Sender ID: Alpha Tags and Personal ("Own") Numbers. It will likely be extended to support additional number types, such as TFN and 10DLC where additional registration, (external) verification, and overall account allowlist of numbers will be required.

Alpha Tag

Sending messages from your brand name is particularly ideal for SMS marketing and two-factor authentication, as it increases recognition and trust. There are, however, a few considerations to be aware of.

Alpha tags are made up of 3-11 letters and/or numbers. Alpha tags must be registered and approved before sending and must have clear relevancy to your business and/or use case.

Alpha Tags appear as the "From" number when you receive messages.

A good alpha tag meets at least one of the following valid use cases:

  • Business names
  • Trademark names
  • Product or service name
  • an acronym, initialism, or contraction of your entity

In addition to the requirements around clearly relating to the business, we typically advise the following for alpha tags to ensure maximum compatibility with the various carriers:

  • 6-11 characters long
  • Only contains characters from the following sets:
  • A-Z
  • a-z
  • 0-9
  • _ (underscore)
  • - (hyphen)

Alpha Tags can currently be registered through the Source Address API for the following countries: AD, AI, AL, AS, AT, AU, AW, BA, BB, BH, BW, CD, CH, CK, CY, DE, DJ, DK, DM, EE, ES, FI, FJ, FM, FO, FR, GB, GD, GG, GI, GL, GM, GQ, GR, GY, IL, IM, IS, JE, JM, JP, KI, KY, LA, LI, LS, LT, LU, LV, MC, ME, MH, MO, MR, MS, MT, MV, NC, NF, NL, NO, NR, NU, PF, PM, PT, SB, SC, SE, SH, SL, SM, ST, TC, TD, TO, VC, VG and WS

To register an Alpha Tag as a sender ID you must:

  1. Make a request to the Request a Sender Address endpoint
  2. Wait for the alpha tag to be approved. The status of the alpha tag can be monitored using the Get status of a sender address request endpoint

Once the alpha tag has been approved, you can begin using it as a Sender ID for SMS messages.

Personal Number

A personal number, or "My Own Number", is a number that you own rather than one provided to you by Sinch. Typically, this is your personal mobile phone number. You may wish to register this number for use with our service so that you can easily send messages from a number already associated with your organisation.

Before you can send messages using your own number, you need to verify that you have a right to use that number. Ensuring you have a right to use a phone number is an important regulatory requirement, aiming to prevent scam, spam, and misuse of messaging services.

Personal numbers can currently be registered through the Source Address API for the following countries: AT, AU, CH, CY, DE, DK, EE, ES, FI, GB, HR, IE, IT, LT, LU, LV, MT, NL, NO, PT, SE, and SI

To register a personal number as a Sender ID you must:

  1. Make a request to the Request a Sender Address endpoint
  2. A unique verification code will be sent to the requested number
  3. Make a request to the Submitting a Verification Code endpoint, using the verification code that was sent in the previous step. A 200 OK response will indicate the number has been verified and is ready for use.

⚠️ Own numbers need to be re-verified every 12 months. You will be notified by email that verification of your number is about to expire.

Requesting a Source Address on behalf of a sub-account

By default, all requests made through the API are made on behalf of the account that the API keys used to authorize the request were made on. API keys created on a parent account can request a source address on behalf of a sub-account. To do this, include a header key Account with the sub-account ID as the value. For example: Account: mySubAccount

Example request with Request a Sender Address from a sub-account

POST /v1/messaging/numbers/sender_address/requests HTTP/1.1
Host: eu.app.api.sinch.com
Accept: application/json
Content-Type: application/json
Authorization: Basic dGhpc2lzYWtleTp0aGlzaXNhc2VjcmV0Zm9ybW1iYXNpY2F1dGhyZXN0YXBp
Account: mySubAccount
{
  "sender_address": "+61341234131",
  "sender_address_type": "INTERNATIONAL",
  "usage_type": "OWN_NUMBER",
  "destination_countries": [
      "AU"
  ],
  "reason": "I confirm that my business has a valid use case",
  "label": "my number sample"
}

Note: The use of the Account header key applies to all Source Address endpoints.

Request a Sender Address

Submit a request to register a new Sender ID. When making a request to this endpoint, you will always need to specify sender_address_type and usage_type parameters. The following table shows the acceptable values and combinations for these parameters:

Sender ID sender_address_type usage_type
Alpha tag ALPHANUMERIC ALPHANUMERIC
Personal number INTERNATIONAL OWN_NUMBER

The other parameters required for your request will depend on the type of Sender ID you are registering.

Sender ID is an Alpha Tag

The following parameters are used when registering an alpha tag as a Sender ID:

  • sender_address: (Required). The alphanumeric string that you wish register as an alpha tag. This parameter is case insensitive. If this alpha tag already exists on your account, you will receive a conflict error message.

  • destination_countries: (Required). The countries that you wish to register the alpha tag for use in, in two-character ISO 3166 format. Currently AD, AI, AL, AS, AT, AW, BA, BB, BH, BW, CD, CH, CK, CY, DE, DJ, DK, DM, EE, ES, FI, FJ, FM, FO, FR, GB, GD, GG, GI, GL, GM, GQ, GR, GY, IL, IM, IS, JE, JM, JP, KI, KY, LA, LI, LS, LT, LU, LV, MC, ME, MH, MO, MR, MS, MT, MV, NC, NF, NL, NO, NR, NU, PF, PM, PT, SB, SC, SE, SH, SL, SM, ST, TC, TD, TO, VC, VG and WS are supported.

  • sender_address_type: (Required). For alpha tags this is always ALPHANUMERIC

  • usage_type: (Required). For alpha tags this is always ALPHANUMERIC

  • label: (Optional). A reference name for the sender ID to allow you to easily track it.

  • reason: (Required). This is a specifically formatted string made up of the following sub-items (all of which are required):

    • useCase: one of the following:

      • SOLE_TRADER_NAME
      • COMPANY_NAME
      • PARTNERSHIP_NAME
      • REGISTERED_TRUST_NAME
      • CO_OPERATIVE_NAME
      • INDIGENOUS_CORPORATION_NAME
      • REGISTERED_ORGANISATION_NAME
      • PERSONAL_NAME
      • AUSTRALIAN_TRADEMARK
      • INTERNATIONAL_TRADEMARK
      • AUSTRALIAN_GOVERNMENT_AGENCY_OR_ENTITY
      • FOREIGN_GOVERNMENT_AGENCY_OR_ENTITY
      • PRODUCT_OR_SERVICE_NAME
      • ACRONYM_INITIALISM
      • CONTRACTION_OF_NAME
      • OTHER

    • description: A description used if OTHER was selected as the use case. Limited to 200 characters.

    • email: The preferred contact email for our approval team when additional details are required.

    • australianGovernmentAgencyOrEntityName: The name of your organisation.

    • abn: Your organisation’s Australian Business Number

    • statement: A legal declaration

      • If applying for your own business: "We are authorized to use the Sender ID with a valid use case."
      • If applying on behalf of a third-party entity: "We are authorized to use the Sender ID on behalf of [full entity name of sender] with a valid use case."

The reason parameter must contain all the above items. A well formatted reason looks like the following:

  • "reason": "{\n  \"useCase\":\"AUSTRALIAN_GOVERNMENT_AGENCY_OR_ENTITY\",\n  \"description\":\"bal bla\",\n  \"email\":\"example@email.com\",\n  \"australianGovernmentAgencyOrEntityName\":\"bla bla\",\n  \"statement\":\"We are authorised to use the Sender ID on behalf of [full entity name of sender] with a valid use case.\"\n}\n"

Sender ID is a Personal Number

The following parameters are used when registering a personal mobile phone number as a Sender ID:

  • sender_address: (Required). The phone number that you wish register as a personal number. This number must be in E.164. If this number is already registered to an account, you will receive a conflict error message.

  • destination_countries: (Required). The country of the number that you wish to register, in two-character ISO 3166 format. Refer to the Types of Sender ID section for a list of currently supported countries.

  • sender_address_type: (Required). For personal numbers this is always INTERNATIONAL

  • usage_type: (Required). For personal numbers this is always OWN_NUMBER

  • label: (Optional). A reference name for the sender ID to allow you to easily track it.

  • Reason: (Required). A string describing why you wish to register the number as a Sender ID. Limited to 200 characters.

Authorizations:
basic_authhmac_auth
Request Body schema: application/json
required

Request body.

One of
sender_address
required
string

The Sender Address to be requested

sender_address_type
required
string
Value: "ALPHANUMERIC"
usage_type
required
string
Value: "ALPHANUMERIC"
destination_countries
required
Array of strings

list of 2-character ISO country codes

reason
required
string
label
string

Responses

Request samples

Content type
application/json
Example
{
  • "sender_address": "EXAMPLE",
  • "sender_address_type": "ALPHANUMERIC",
  • "usage_type": "ALPHANUMERIC",
  • "destination_countries": [
    ],
  • "reason": "{\n \"useCase\":\"AUSTRALIAN_GOVERNMENT_AGENCY_OR_ENTITY\",\n \"description\":\"bal bla\",\n \"email\":\"xample@email.com\",\n \"australianGovernmentAgencyOrEntityName\":\"bla bla\",\n \"statement\":\"We are authorised to use the Sender ID on behalf of [full entity name of sender] with a valid use case.\"\n}\n",
  • "label": "label"
}

Response samples

Content type
application/json
Example
{
  • "id": "6f79a12e-14f1-4776-adc0-5c5e48a999b7",
  • "sender_address": "EXAMPLE",
  • "sender_address_type": "ALPHANUMERIC",
  • "usage_type": "ALPHANUMERIC",
  • "destination_countries": [
    ],
  • "reason": "{\n \"useCase\":\"AUSTRALIAN_GOVERNMENT_AGENCY_OR_ENTITY\",\n \"description\":\"bal bla\",\n \"email\":\"xample@email.com\",\n \"australianGovernmentAgencyOrEntityName\":\"bla bla\",\n \"statement\":\"We are authorised to use the Sender ID on behalf of [full entity name of sender] with a valid use case.\"\n}\n",
  • "label": "label",
  • "status": "OPEN",
  • "account_id": "XYZ_ExampleAccount",
  • "created_date": "2023-10-25T14:15:22Z",
  • "last_modified_date": "2023-10-25T14:15:22Z"
}

Submitting a verification code

Complete the 2FA verification process required to register a Personal Number as a Sender ID. The following parameters are required for this request:

  • id: The UUID received in the API response of your request to the Request a Sender Address endpoint.
  • verification_code: The six-digit code received via SMS to the phone number that you are attempting to register
Authorizations:
basic_authhmac_auth
path Parameters
id
required
string
Example: 7ca628a8-08b0-4e42-aeb8-960b37049c31

36 character UUID.

Request Body schema: application/json
required

Verification code to be verified

verification_code
required
string

Verify Sender Address Request

Responses

Request samples

Content type
application/json
{
  • "verification_code": "123456"
}

Response samples

Content type
application/json
{
  • "id": "6f79a12e-14f1-4776-adc0-5c5e48a999b8",
  • "sender_address": "+61401234567",
  • "sender_address_type": "INTERNATIONAL",
  • "usage_type": "OWN_NUMBER",
  • "destination_countries": [
    ],
  • "reason": "my personal number",
  • "label": "label",
  • "status": "PENDING",
  • "account_id": "XYZ_ExampleAccount",
  • "created_date": "2019-08-24T14:15:22Z",
  • "last_modified_date": "2019-08-24T14:15:22Z"
}

Re-verify Sender Address

The below table defines the allowed combination of sender_address_type and usage_type values

Description sender_address_type usage_type
Own Number INTERNATIONAL OWN_NUMBER

OWN_NUMBER Sender Addresses require reverification every 12 months to allow continued use. The reverification process is quite similar to the original verification process for the Sender Address, and requires a fresh 2FA check.

To reverify an OWN_NUMBER Sender Address:

  1. Retrieve the UUID for the OWN_NUMBER using the Get all approved sender addresses endpoint
  2. Make a request to this endpoint to trigger the 2FA check
  3. Make a POST request to the Submit verification code endpoint, providing the new 2FA code in the body of the request
Authorizations:
basic_authhmac_auth
path Parameters
id
required
string
Example: 7ca628a8-08b0-4e42-aeb8-960b37049c31

Sender Address ID

Responses

Response samples

Content type
application/json
{
  • "id": "6f79a12e-14f1-4776-adc0-5c5e48a999b7",
  • "sender_address": "+61450999999",
  • "sender_address_type": "INTERNATIONAL",
  • "usage_type": "OWN_NUMBER",
  • "destination_countries": [
    ],
  • "reason": "my company is example.com",
  • "label": "Example Address",
  • "status": "PENDING",
  • "account_id": "XYZ_ExampleAccount",
  • "created_date": "2019-08-24T14:15:22Z",
  • "last_modified_date": "2019-08-24T14:15:22Z"
}

Get status of a sender address request

Retrieve the current status of a sender address request using the request ID returned in the sender address request endpoint. A successful request to the get message status endpoint will return a response body as follows:

{
    "id": "365dd65f-7101-46cd-8e79-e49c5620eb15",
    "sender_address": "sample",
    "sender_address_type": "ALPHANUMERIC",
    "usage_type": "ALPHANUMERIC",
    "destination_countries": [
      "AU"
    ],
    "reason": "This is my approval reason",
    "label": "label"
    "status": "APPROVED",
    "account_id": "sample",
    "created_date": "2023-09-07T05:48:26.741Z",
    "last_modified_date": "2023-09-07T05:49:20.888Z"
}
Authorizations:
basic_authhmac_auth
path Parameters
id
required
string
Example: 7ca628a8-08b0-4e42-aeb8-960b37049c31

36 character UUID.

Responses

Response samples

Content type
application/json
{
  • "id": "6f79a12e-14f1-4776-adc0-5c5e48a999b7",
  • "sender_address": "EXAMPLE",
  • "sender_address_type": "ALPHANUMERIC",
  • "usage_type": "ALPHANUMERIC",
  • "destination_countries": [
    ],
  • "reason": "This is my reason",
  • "label": "label",
  • "status": "OPEN",
  • "account_id": "XYZ_ExampleAccount",
  • "created_date": "2019-08-24T14:15:22Z",
  • "last_modified_date": "2019-08-24T14:15:22Z"
}

Get all approved sender addresses

Retrieve all sender addresses currently registered to your account.

Authorizations:
basic_authhmac_auth
query Parameters
sender_address
string
Example: sender_address=EXAMPLE

A string containing some or all of a specific Sender ID

sender_address_type
string
Enum: "ALPHANUMERIC" "INTERNATIONAL"
Example: sender_address_type=ALPHANUMERIC

The type of Sender ID. This will be either ALPHANUMERIC or INTERNATIONAL

usage_type
string
Enum: "ALPHANUMERIC" "OWN_NUMBER" "DEDICATED"
Example: usage_type=ALPHANUMERIC

The usage type of the Sender ID. This will be ALPHANUMERIC, OWN_NUMBER, or DEDICATED

include_related_accounts
boolean
Example: include_related_accounts=true

When true, include Sender IDs that belong to related accounts in addition to those on the authenticated account.

expiry_status
string
Enum: "EXPIRED" "EXPIRING"
Example: expiry_status=EXPIRED

Filter the results by OWN_NUMBER Sender IDs that are already expired, or will expire soon. Acceptable values are EXPIRED and EXPIRING. This parameter requires both the sender_address_type and usage_type parameters to be present.

page_size
integer
Default: 20
Example: page_size=20

The number of results per page. Default is 20.

token
string
Example: token=eyJwYWdlIjoyfQ

In paginated data, the original request will return with a "next_token" attribute. This token must be entered into subsequent call in the "token" query parameter to obtain the next set of records.

Responses

Response samples

Content type
application/json
{
  • "data": [
    ],
  • "pagination": {
    }
}

Get sender address by id

Retrieve a sender address currently registered to your account by Id

Authorizations:
basic_authhmac_auth
path Parameters
id
required
string <uuid>
Example: 7ca628a8-08b0-4e42-aeb8-960b37049c31

The UUID of the sender address

Responses

Response samples

Content type
application/json
{
  • "id": "6f79a12e-14f1-4776-adc0-5c5e48a999b8",
  • "sender_address": "+61401234567",
  • "sender_address_type": "INTERNATIONAL",
  • "usage_type": "OWN_NUMBER",
  • "destination_countries": [
    ],
  • "reason": "my personal number",
  • "label": "ABC",
  • "account_id": "XYZ_ExampleAccount",
  • "created_date": "2019-08-24T14:15:22Z",
  • "last_modified_date": "2019-08-24T14:15:22Z",
  • "expiry": "2019-08-24T14:15:22Z",
  • "display_status": "APPROVED"
}

Delete Sender Address

Remove any registered sender addresses that are no longer required from your account.

Authorizations:
basic_authhmac_auth
path Parameters
id
required
string <uuid>
Example: 7ca628a8-08b0-4e42-aeb8-960b37049c31

The UUID of the sender address

query Parameters
reason
required
string
Example: reason=I%20want%20do%20delete%20this%20number.

A string detailing why the sender address is being removed

Responses

Response samples

Content type
application/json
{
  • "message": "Request failed to parse correctly. Please ensure input is valid and try again.",
  • "details": [
    ]
}

Update My Own Number Label

Update label for my own number only.

Authorizations:
basic_authhmac_auth
path Parameters
id
required
string <uuid>
Example: 7ca628a8-08b0-4e42-aeb8-960b37049c31

The UUID of the sender address

Request Body schema: application/json
required

Input the label need to update

label
required
string <= 100 characters

Label need to be updated

Responses

Request samples

Content type
application/json
{
  • "label": "ExampleLabel"
}

Response samples

Content type
application/json
{
  • "id": "6f79a12e-14f1-4776-adc0-5c5e48a999b8",
  • "sender_address": "+61401234567",
  • "sender_address_type": "INTERNATIONAL",
  • "usage_type": "OWN_NUMBER",
  • "destination_countries": [
    ],
  • "reason": "my personal number",
  • "label": "ABC",
  • "account_id": "XYZ_ExampleAccount",
  • "created_date": "2019-08-24T14:15:22Z",
  • "last_modified_date": "2019-08-24T14:15:22Z",
  • "expiry": "2019-08-24T14:15:22Z",
  • "display_status": "APPROVED"
}

Number Authorisation

The number authorisation API allows you to manage your blacklists. Sinch automatically adds numbers to your blacklist if people send one of the opt-out keywords in response to one of your messages. This is a legal requirement. If you decide to handle the legal compliance yourself, calls to this endpoint will not affect your messages.

List all blocked numbers

This endpoint returns a list of 100 numbers that are on the blacklist. There is a pagination token to retrieve the next 100 numbers

In the example response the numbers +61491570156 and +61491570157 are on the blacklist and therefore will never receive any messages from you.

Authorizations:
basic_authhmac_auth
query Parameters
token
string
Example: token=eyJwYWdlIjoyfQ

Opaque pagination token from a previous response. Omit on the first request. Pass the returned token to retrieve the next page of up to 100 numbers.

Responses

Response samples

Content type
application/json
{
  • "uri": "/v1/number_authorisation/mt/blacklist\"",
  • "numbers": [
    ],
  • "pagination": {
    }
}

Add one or more numbers to your blacklist

This endpoint allows you to add one or more numbers to your blacklist. You can add up to 10 numbers in one request. NOTE: numbers need to be in international format and therefore start with a +

Authorizations:
basic_authhmac_auth
Request Body schema: application/json
required

Request body.

numbers
required
Array of strings

Array of numbers to be added to the blacklist. These should be specified in E.164 international format. For information on E.164, please refer to http://en.wikipedia.org/wiki/E.164.

Responses

Request samples

Content type
application/json
{
  • "numbers": [
    ]
}

Response samples

Content type
application/json
{
  • "uri": "/v1/number_authorisation/mt/blacklist",
  • "numbers": [
    ]
}

Remove a number from the blacklist

This endpoint allows you to remove a number from the blacklist. Only one number can be deleted per request. In the example +61491570157 will be removed from the blacklist. NOTE: numbers need to be in international format and therefore start with a +

Authorizations:
basic_authhmac_auth
path Parameters
number
required
string
Example: +61491570156

a number in international format e.g. +61491570156

Responses

Check if one or several numbers are currently blacklisted

This endpoint lists for each requested number if you are authorised (which means the number is not blacklisted) to send to this number. In the example given +61491570157 is on the blacklist. NOTE: We do this call for you internally no matter what. Use this endpoint only if you want to have some indication upfront. If you send a message which is on the blacklist, we issue a delivery receipt with the appropriate status code.

Authorizations:
basic_authhmac_auth
path Parameters
numbers
required
Array of strings >= 1
Example: +61491570156,+61491570157

one or more numbers in international format separated by a comma, e.g. +61491570156,+61491570157

Responses

Response samples

Content type
application/json
{
  • "uri": "/v1/number_authorisation/is_authorised/+61491570156,+61491570157",
  • "numbers": [
    ]
}

Dedicated Numbers

The Numbers API allows your to purchase, provision and configure the dedicated numbers assigned to your Sinch account.

To learn more about the benefits of dedicated numbers, and their use cases, visit our feature page.

This is a paid feature and must be enabled on your account. Please contact support@app.sinch.com or your account manager.

Concepts

This API allows you to purchase and assign to your account a number from a pool of dedicated numbers. Dedicated numbers are priced differently according to their classification.

The following is the system by which we classify dedicated numbers.

Pattern Type Gold Silver
Same Number Six of same (e.g. 999999) Five of same (e.g. 999991 or 199999)
Sequence Six in sequence (e.g. 234567, or 765432) Five in sequence (e.g. 245678, 456782, or 287654)
Triplets Two identical (e.g. 123123) or two double (e.g. 444666) Identical pairs within triplets (e.g. 004008, or 400800), one identical and one in sequence (e.g. 444789, or 345777), or mirror image (e.g. 468864)
Pair Three identical (e.g. 454545) Three non-identical (e.g. 447700) or three in sequence (e.g. 232425, or 090807)

Any numbers that do not meet the criteria for Gold or Silver are classified as Bronze.

For pricing on dedicated numbers please refer to the Numbers page in our Hub web portal, or speak with your Sinch Account Manager.

Get numbers

Get a list of available dedicated numbers, filtered by requirements.

Authorizations:
basic_authhmac_auth
query Parameters
country
string
Example: country=AU

ISO_3166 country code, 2 character code to filter available numbers by country

matching
string
Example: matching=223344

filters results by a pattern of digits contained within the number

page_size
integer <int32>
Example: page_size=20

number of results returned per page, default 50

service_types
string (service_types)
Enum: "SMS" "TTS" "MMS"
Example: service_types=SMS

filter results to include numbers with certain capabilities

token
string
Example: token=eyJwYWdlIjoyfQ

In paginated data the original request will return with a "next_token" attribute. This token must be entered into subsequent call in the "token" query parameter to obtain the next set of records.

Responses

Response samples

Content type
application/json;charset=UTF-8
{
  • "pagination": {
    },
  • "data": [
    ]
}

Get number by ID

Get details about a specific dedicated number.

Authorizations:
basic_authhmac_auth
path Parameters
id
required
string
Example: 7ca628a8-08b0-4e42-aeb8-960b37049c31

unique identifier

header Parameters
Accept
required
string
Example: application/json;charset=UTF-8

Requested response media type.

Responses

Response samples

Content type
application/json;charset=UTF-8
{
  • "id": "be3cb602-7c00-4c87-ae4b-b8defc04f179",
  • "phone_number": 614111111111,
  • "country": "AU",
  • "type": "MOBILE",
  • "classification": "SILVER",
  • "available_after": "2019-06-21T04:04:31.707Z",
  • "capabilities": [
    ]
}

Get assignment

Use this endpoint to view details of the assignment including the label and metadata.

Authorizations:
basic_authhmac_auth
path Parameters
numberId
required
string
Example: b9ee3fe8-2c20-47b1-96e9-c5d12d7ed985

unique identifier

header Parameters
Accept
required
string
Example: application/json;charset=UTF-8

Requested response media type.

Responses

Response samples

Content type
application/json;charset=UTF-8
{
  • "metadata": {
    },
  • "label": "LabelTest0",
  • "id": "be3cb602-7c00-4c87-ae4b-b8defc04f179",
  • "number_id": "b9ee3fe8-2c20-47b1-96e9-c5d12d7ed985"
}

Create assignment

Assign the specified number to the authenticated account. Use the body of the request to specify a label or metadata for this number assignment.

If you receive a conflict error then the number that you have selected is unavailable for assignment. This means that the number is either already assigned to another account, or has an available_after date in the future. Should this occur, perform another search and select a different number.

Authorizations:
basic_authhmac_auth
path Parameters
numberId
required
string
Example: b9ee3fe8-2c20-47b1-96e9-c5d12d7ed985

unique identifier

header Parameters
Accept
required
string
Example: application/json;charset=UTF-8

Requested response media type.

Request Body schema: application/json
required

Request body.

label
required
string
required
object (Metadata)

Responses

Request samples

Content type
application/json
{
  • "label": "ExampleLabel",
  • "metadata": {
    }
}

Response samples

Content type
application/json;charset=UTF-8
{
  • "label": "cillum irure",
  • "number_id": "et pariatur"
}

Delete assignment

Release the dedicated number from your account.

Authorizations:
basic_authhmac_auth
path Parameters
numberId
required
string
Example: b9ee3fe8-2c20-47b1-96e9-c5d12d7ed985

unique identifier

header Parameters
Accept
required
string
Example: application/json;charset=UTF-8

Requested response media type.

Responses

Response samples

Content type
application/json;charset=UTF-8
"string"

Update assignment

Retain the dedicated number assignment, and edit or add additional metadata or title information. You can exclude any data from the body of this request that you do not want updated.

Authorizations:
basic_authhmac_auth
path Parameters
numberId
required
string
Example: b9ee3fe8-2c20-47b1-96e9-c5d12d7ed985

unique identifier

header Parameters
Accept
required
string
Example: application/json;charset=UTF-8

Requested response media type.

Request Body schema: application/json
required

Request body.

label
required
string
required
object (Metadata)

Responses

Request samples

Content type
application/json
{
  • "label": "ExampleLabel",
  • "metadata": {
    }
}

Response samples

Content type
application/json;charset=UTF-8
{
  • "id": "b06387c0-f4d9-4333-8657-c819bede79c3",
  • "number_id": "073fb6bd-f054-4644-aada-8fb204145d77"
}

Get assigned numbers

Retrieves the list of assigned dedicated numbers.

Authorizations:
basic_authhmac_auth
query Parameters
page_size
integer <int32>
Example: page_size=20

Number of results returned per page, default 50

token
string
Example: token=eyJwYWdlIjoyfQ

In paginated data the original request will return with a "next_token" attribute. This token must be entered into subsequent call in the "token" query parameter to obtain the next set of records.

number_id
string
Example: number_id=examples

Unique identifier of a specific number

matching
string
Example: matching=223344

Filters results by a pattern of digits contained within the number

country
string
Example: country=AU

Filter results by ISO_3166 country code, 2 character code to filter available numbers by country

type
string (Type)
Enum: "MOBILE" "LANDLINE" "TOLL_FREE" "SHORT_CODE"
Example: type=MOBILE

Filter results by Number type. When both type and types are provided, types will take precedence, and type will be ignored.

types
string (Types)
Enum: "MOBILE" "LANDLINE" "TOLL_FREE" "SHORT_CODE"
Example: types=MOBILE,LANDLINE,TOLL_FREE

Filter results by Number Types

classification
string (Classification)
Enum: "BRONZE" "SILVER" "GOLD"
Example: classification=BRONZE

Filter results by Number Classification

service_types
string (service_types)
Enum: "SMS" "TTS" "MMS"
Example: service_types=SMS

Filter results by capabilities

label
string
Example: label=examples

Filter results by a matching label

sort_by
string (sort_by)
Enum: "ACCOUNT" "ACTION" "DESTINATION_ADDRESS" "DESTINATION_ADDRESS_COUNTRY" "FORMAT" "SOURCE_ADDRESS" "SOURCE_ADDRESS_COUNTRY" "TIMESTAMP"
Example: sort_by=TIMESTAMP

Sort results by property

sort_direction
string (sort_direction)
Enum: "ASCENDING" "DESCENDING"
Example: sort_direction=ASCENDING

Sort direction

header Parameters
Accept
required
string
Example: application/json;charset=UTF-8

Requested response media type.

Responses

Response samples

Content type
application/json;charset=UTF-8
{
  • "pagination": {
    },
  • "data": [
    ]
}

Webhooks Management

Webhooks Management API allows you to manage your webhooks configuration. You can subscribe to one or several events, retrieve the webhooks, update them or even delete them if needed.

Retrieve webhook

Retrieve all the webhooks created for the connected account. A successful request to the retrieve webhook endpoint will return a response body as follows:

{
    "page": 0,
    "pageSize": 100,
    "pageData": [
        {
            "id": "76fa7010-8c1f-4a24-917a-4d62a54e744d",
            "url": "http://webhook.com",
            "method": "POST",
            "encoding": "JSON",
            "headers": {},
            "events": [
                "ENROUTE_DR",
                "DELIVERED_DR"
            ],
            "template": "{\"id\":\"$mtId\",\"status\":\"$statusCode\"}",
            "read_timeout": 5000,
            "retries": 3,
            "retry_delay": 30
        }
    ]
}

Note: Response 400 is returned when the page query parameter is not valid or the pageSize query parameter is not valid.

Authorizations:
basic_authhmac_auth
query Parameters
page
integer <int32>
Example: page=0

Page number for pagination (0-based).

page_size
integer <int32>
Example: page_size=20

Number of results per page.

Responses

Response samples

Content type
application/json
{
  • "page": 0,
  • "pageSize": 100,
  • "pageData": [
    ]
}

Create webhook

Create a webhook for one or more of the specified events.

A webhook would typically have the following structure:

{
  "url": "http://webhook.com",
  "method": "POST",
  "encoding": "JSON",
  "headers": {},
  "events": [
    "ENROUTE_DR",
    "DELIVERED_DR"
  ],
  "template": "{\"id\":\"$mtId\",\"status\":\"$statusCode\"}",
  "read_timeout": 5000,
  "retries": 3,
  "retry_delay": 30
}

A valid webhook must consist of the following properties:

  • url The configured URL which will trigger the webhook when a selected event occurs.

  • method The methods to map CRUD (create, retrieve, update, delete) operations to HTTP requests.

  • encoding Webhooks can be delivered using different content types. You can choose from JSON, FORM_ENCODED or XML. This will automatically add the Content-Type header for you so you don't have to add it again in the headers property.

  • headers HTTP header fields which provide required information about the request or response, or about the object sent in the message body. This should NOT include the Content-Type header.

  • events Event or events that will trigger the webhook. At least one event should be present.

  • template The structure of the payload that will be returned. You can format this in JSON or XML.

  • read_timeout (Optional) The read timeout for the call to the Webhook in milliseconds. Set to 20000 by default, max 60000.

  • retries (Optional) The read timeout for the call to the Webhook in milliseconds. Set to 20000 by default, max 60000.

  • retry_delay (Optional) The delay period between retries in seconds. Minimum of 5, max 60.

Types of Events

You can select all of the events (listed below) or combine them in whatever way you like but at least one event must be used. Otherwise, the webhook won't be created.

A webhook will be triggered when any one or more of the events occur:

  • SMS
    • RECEIVED_SMS Receive an SMS
    • OPT_OUT_SMS Opt-out occurred
  • MMS
    • RECEIVED_MMS Receive an MMS
  • DR (Delivery Reports)
    • ENROUTE_DR Message is enroute
    • EXPIRED_DR Message has expired
    • REJECTED_DR Message is rejected
    • FAILED_DR Message has failed
    • DELIVERED_DR Message is delivered
    • SUBMITTED_DR Message is submitted

Template Parameters

You can choose what to include in the data that will be sent as the payload via the Webhook. It's up to you to choose what format you would like the payload to be returned. You can choose between JSON or XML.

Keep in mind, if you've chosen JSON as the format, you must escape the JSON in the template value (see example above).

The table illustrates a list of all the parameters that can be included in the template and which event types it can be applied to.

Data Parameter Name Example Event Type
Service Type $format, $type - $type will be deprecated in the future; use $format instead SMS DR MO MO MMS
Message ID $mtId, $messageId 877c19ef-fa2e-4cec-827a-e1df9b5509f7 DR MO MO MMS
Delivery Report ID $drId, $reportId 01e1fa0a-6e27-4945-9cdb-18644b4de043 DR
Reply ID $moId, $replyId a175e797-2b54-468b-9850-41a3eab32f74 MO MO MMS
Account ID $accountId DeveloperPortal7000 DR MO MO MMS
Message Timestamp $submittedTimestamp 2016-12-07T08:43:00.850Z DR MO MO MMS
Provider Timestamp $receivedTimestamp 2016-12-07T08:44:00.850Z DR MO MO MMS
Message Status $status enroute DR
External Metadata $metadata.get('key') name DR MO MO MMS
Source Address $sourceAddress +61491570156 DR MO MO MMS
Destination Address $destinationAddress +61491593156 MO MO MMS
Message Content $mtContent, $messageContent, $esc.json($!mtContent) - when used in JSON encoded template Hi Derp DR MO MO MMS
Reply Content $moContent, $replyContent, $esc.json($!moContent) - when used in JSON encoded template Hello Derpina MO MO MMS
Retry Count $retryCount 1 DR MO MO MMS
Billing Unit $billingUnits 1 DR
Attachments $attachments, refer to example below on how to use in JSON encoded template [
{
"content_type": "image/png",
"content": "...",
"original_name": "file.png"
}
]		 MO MMS

Example Webhook Request with Templates

MO / MO MMS
{
  "url": "http://webhook.com",
  "method": "POST",
  "encoding": "JSON",
  "events": ["RECEIVED_MMS"],
  "template": "{  \"account_id\": \"$accountId\",  \"reply_id\": \"$replyId\",  \"destination_number\": \"$destinationAddress\",  \"source_number\": \"$sourceAddress\",  \"date_received\": \"$receivedTimestamp\",  \"message_id\": \"$messageId\",  #if ($attachments)  \"attachments\": [   #foreach ($entry in $attachments)    {      \"content_type\": \"$entry.contentType\",      \"content\": \"$entry.base64\",      \"original_name\": \"$entry.originalName\"    }#if( $foreach.hasNext ),#end    #end  ],  #else  \"content\": \"$esc.json($moContent)\",  #end  \"metadata\": {    #foreach ($entry in $metadata.entrySet())    \"$entry.key\": \"$entry.value\"#if( $foreach.hasNext ),#end    #end  }}"
}
DR (Delivery Report)
{
  "url": "http://webhook.com",
  "method": "POST",
  "encoding": "JSON",
  "events": ["DELIVERED_DR"],
  "template": "{  \"delivery_report_id\": \"$drId\",  \"source_number\": \"$sourceAddress\",  \"date_received\": \"$receivedTimestamp\",  \"status\": \"$status\",  \"delay\": \"0\",  \"submitted_date\": \"$submittedTimestamp\",  \"message_id\": \"$messageId\",  \"original_text\": \"$esc.json($!mtContent)\",  \"vendor_account_id\": {    \"vendor_id\": \"$vendorId\",    \"account_id\": \"$accountId\"  },  \"error_code\": \"$statusCode\",  \"metadata\": {    #foreach($key in $metadata.keySet())    \"$key\": \"$esc.json($metadata.get($key))\"#if( $velocityHasNext ),#end    #end  }}"
}

Message Statuses

Delivery Reports indicate message status. A message can have one of the following statuses:

  • enroute: Message has been received by the gateway and is being processed (or waiting to be processed).
  • submitted: Message has been submitted to a provider/carrier for delivery.
  • delivered: Message delivery has been confirmed by the provider, including to the handset (where possible).
  • expired: The message has expired.
  • rejected: The message will not be delivered - permanent failure. Reasons may include usage limit exceeded, insufficient credit, number blocked, or content filtered
  • failed: The message has failed. Reasons may include no active routes to destination or undeliverable by downstream provider.

Message Status Codes

Status codes provide more granular insight into a message's status. A message can have one of the following status codes:

  • 101: Message being processed by the gateway.
  • 102: Message is being rerouted to a different provider after failing via the first provider.
  • 151: Message held for screening.
  • 200: Message submitted to downstream provider for delivery.
  • 210: Message accepted by downstream provider.
  • 211: Message is enroute for delivery by provider.
  • 212: Message submitted. Delivery pending.
  • 213: Message scheduled for delivery by downstream provider.
  • 220: Message delivered.
  • 221: Message delivered to the handset.
  • 320: Message validity period has expired (prior to submission).
  • 401: Message validity period has expired (before delivery).
  • 301: Usage threshold reached. Message discarded.
  • 302: Destination address blocked. Message discarded.
  • 303: Source address blocked. Message discarded.
  • 304: Message dropped. Contact support.
  • 305: Message discarded due to duplicate detection.
  • 402: Message rejected by downstream provider.
  • 403: Message skipped by downstream provider.
  • 410: Invalid source address.
  • 411: Invalid destination address.
  • 412: Destination address blocked.
  • 413: SMS service unavailable on destination.
  • 414: Destination unreachable.
  • 330: Gateway failure.
  • 331: Message discarded.
  • 332: No available route to destination.
  • 333: Source address unsupported for this destination.
  • 400: Message failed; undeliverable.
  • 405: Message cancelled or deleted by provider.

Note: A 400 response will be returned if the url is invalid, the events, encoding or method is null or the headers has a Content-Type attribute.

Authorizations:
basic_authhmac_auth
Request Body schema: application/json
required

Request body.

url
required
string <= 1000 characters

HTTP(S) URL for the webhook endpoint.

method
required
string
Enum: "GET" "POST" "PATCH" "PUT" "DELETE"

HTTP method used when invoking the webhook.

encoding
required
string
Enum: "JSON" "FORM_ENCODED" "XML"

Content encoding for the webhook request body.

events
required
Array of strings non-empty

Non-empty set of webhook event types to subscribe to.

object

Optional map of custom headers. Content-Type header is not allowed. Key max length is 200 characters, value max length is 1000 characters.

template
string

Optional Velocity template for the webhook request body.

read_timeout
integer [ 1 .. 60000 ]

The read timeout for the webhook call in milliseconds (1-60000).

retries
integer [ 0 .. 5 ]

The number of times to retry a failed webhook call (0-5).

retry_delay
integer [ 5 .. 60 ]

The delay between retries in seconds (5-60).

Responses

Request samples

Content type
application/json
{
  • "url": "http://webhook.com",
  • "method": "POST",
  • "encoding": "JSON",
  • "headers": { },
  • "events": [
    ],
  • "template": "{\"id\":\"$mtId\",\"status\":\"$statusCode\"}",
  • "read_timeout": 5000,
  • "retries": 3,
  • "retry_delay": 30
}

Response samples

Content type
application/json
{
  • "id": "76fa7010-8c1f-4a24-917a-4d62a54e744d",
  • "url": "http://webhook.com",
  • "method": "POST",
  • "encoding": "JSON",
  • "headers": { },
  • "events": [
    ],
  • "template": "{\"id\":\"$mtId\",\"status\":\"$statusCode\"}",
  • "read_timeout": 5000,
  • "retries": 3,
  • "retry_delay": 30
}

Delete webhook

Delete a webhook that was previously created for the connected account. A webhook can be cancelled by appending the UUID of the webhook to the endpoint and submitting a DELETE request to the /webhooks/messages endpoint.

A successful request to the retrieve webhook endpoint will return a null response.

Note: Only pre-created webhooks can be deleted. If an invalid or non existent webhook ID parameter is specified in the request, then a HTTP 404 Not Found response will be returned.

Authorizations:
basic_authhmac_auth
path Parameters
webhookId
required
string <uuid>
Example: 7ca628a8-08b0-4e42-aeb8-960b37049c31

Unique identifier of the webhook.

Responses

Update webhook

Update a webhook. You can update individual attributes or all of them by submitting a PATCH request to the /webhooks/messages endpoint (the same endpoint used above to delete a webhook).

All fields in the request body are optional, but at least one must be provided. An empty body or a body with all null fields will be rejected.

A successful request to the update webhook endpoint will return a response body as follows:

{
    "id": "76fa7010-8c1f-4a24-917a-4d62a54e744d",
    "url": "http://webhook.com",
    "method": "POST",
    "encoding": "JSON",
    "headers": {},
    "events": [
        "ENROUTE_DR",
        "DELIVERED_DR"
    ],
    "template": "{\"id\":\"$mtId\",\"status\":\"$statusCode\"}",
    "read_timeout": 5000,
    "retries": 3,
    "retry_delay": 30
}

Note: Only pre-created webhooks can be deleted. If an invalid or non existent webhook ID parameter is specified in the request, then a HTTP 404 Not Found response will be returned.

Authorizations:
basic_authhmac_auth
path Parameters
webhookId
required
string <uuid>
Example: 7ca628a8-08b0-4e42-aeb8-960b37049c31

Unique identifier of the webhook.

Request Body schema: application/json
required

Request body.

url
string <= 1000 characters

HTTP(S) URL for the webhook endpoint.

method
string
Enum: "GET" "POST" "PATCH" "PUT" "DELETE"

HTTP method used when invoking the webhook.

encoding
string
Enum: "JSON" "FORM_ENCODED" "XML"

Content encoding for the webhook request body.

object

Optional map of custom headers. Content-Type header is not allowed. Key max length is 200 characters, value max length is 1000 characters.

template
string

Velocity template for the webhook request body.

events
Array of strings non-empty

Webhook event types to subscribe to. If provided, must be non-empty (events: [] is rejected).

Responses

Request samples

Content type
application/json
{
  • "url": "http://webhook.com",
  • "method": "POST",
  • "encoding": "JSON",
  • "headers": { },
  • "events": [
    ],
  • "template": "{\"id\":\"$mtId\",\"status\":\"$statusCode\"}"
}

Response samples

Content type
application/json
{
  • "id": "76fa7010-8c1f-4a24-917a-4d62a54e744d",
  • "url": "http://webhook.com",
  • "method": "POST",
  • "encoding": "JSON",
  • "headers": { },
  • "events": [
    ],
  • "template": "{\"id\":\"$mtId\",\"status\":\"$statusCode\"}",
  • "read_timeout": 5000,
  • "retries": 3,
  • "retry_delay": 30
}

Signature Key Management

As a Sinch customer, you want to be able to ensure that webhooks are coming from Sinch and not from a 3rd party. Since these are calls to your own system, you should be provided with an extra level of security when calling your resources.

The Sinch Signature Key API provides a number of endpoints for managing key used to sign each unique request to ensure security and the requests can't (easily) be spoofed. This is similar to using HMAC in your outbound messaging (rather than HTTP Basic).

The Signature Key API provides seven main endpoints:

  • Create signature key Create a new signature key for signature verification in webhooks.
  • Get signature key detail Retrieve the current detail of a signature key using the key_id returned in the create signature key endpoint.
  • Delete signature key Delete a signature key using the key_id returned in the create signature key endpoint.
  • Get signature key list Retrieve the paginated list of signature keys.
  • Enable signature key Enable a signature key using the key_id returned in the create signature key endpoint.
  • Get enabled signature key Retrieve the current enabled signature key.
  • Disable an enabled signature key Disable the current enabled signature key.

Get signature key list

Retrieve the paginated list of signature keys.

A successful request for the get signature key list endpoint will return a response body as follows:

[
  {
    "key_id": "7ca628a8-08b0-4e42-aeb8-960b37049c31",
    "cipher": "RSA",
    "digest": "SHA224",
    "created": "2018-01-18T10:16:12.364Z",
    "enabled": false
  }
]
Authorizations:
basic_authhmac_auth
query Parameters
page
required
string
Example: page=1

Page number for pagination (1-based).

page_size
required
string
Example: page_size=20

Number of results per page.

Responses

Response samples

Content type
application/json
[
  • {
    },
  • {
    }
]

Create signature key

This will create a key pair:

  • The private key stored in Sinch is used to create the signature.

  • The public key is returned and stored at your side to verify the signature in webhooks.

You need to enable your signature key after creating.

The most basic body has the following structure:

{
    "digest": "SHA224",
    "cipher": "RSA"
}

  • digest is used to hash the message. The valid values for digest type are: SHA224, SHA256, SHA512

  • cipher is used to encrypt the hashed message. The valid value for cipher type is: RSA

A successful request for the create signature key endpoint will return a response body as follows:

{
    "key_id": "7ca628a8-08b0-4e42-aeb8-960b37049c31",
    "public_key": "MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQCTIxtRyT5CuOD74r7UCT+AKzWNxvaAP9myjAqR7+vBnJKEvoPnmbKTnm6uLlxutnMbjKrnCCWnQ9vtBVnnd+ElhwLDPADfMcJoOqwi7mTcxucckeEbBsfsgYRfdacxgSZL8hVD1hLViQr3xwjEIkJcx1w3x8npvwMuTY0uW8+PjwIDAQAB",
    "cipher": "RSA",
    "digest": "SHA224",
    "created": "2018-01-18T10:16:12.364Z",
    "enabled": false
}

The response body of a successful POST request to the create signature key endpoint will contain six properties:

  • key_id will be a 36 character UUID which can be used to enable, delete or get the details.

  • public_key is used to decrypt the signature.

  • cipher same as cipher in request body.

  • digest same as digest in request body.

  • created is the created date.

  • enabled is false for the new signature key. You can use the enable signature key endpoint to set this field to true.

Authorizations:
basic_authhmac_auth
header Parameters
Accept
required
string
Example: application/json

Requested response media type.

Request Body schema: application/json
required

Request body.

digest
required
string
cipher
required
string

Responses

Request samples

Content type
application/json
{
  • "digest": "SHA224",
  • "cipher": "RSA"
}

Response samples

Content type
application/json
{
  • "key_id": "7ca628a8-08b0-4e42-aeb8-960b37049c31",
  • "public_key": "MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQCTIxtRyT5CuOD74r7UCT+AKzWNxvaAP9myjAqR7+vBnJKEvoPnmbKTnm6uLlxutnMbjKrnCCWnQ9vtBVnnd+ElhwLDPADfMcJoOqwi7mTcxucckeEbBsfsgYRfdacxgSZL8hVD1hLViQr3xwjEIkJcx1w3x8npvwMuTY0uW8+PjwIDAQAB",
  • "cipher": "RSA",
  • "digest": "SHA224",
  • "created": "2018-01-18T10:16:12.364Z",
  • "enabled": false
}

Get signature key detail

Retrieve the current detail of a signature key using the key_id returned in the create signature key endpoint.

A successful request for the get signature key detail endpoint will return a response body as follows:

{
    "key_id": "7ca628a8-08b0-4e42-aeb8-960b37049c31",
    "cipher": "RSA",
    "digest": "SHA224",
    "created": "2018-01-18T10:16:12.364Z",
    "enabled": false
}

Note: If an invalid or non-existent key_id parameter is specified in the request, then an HTTP 404 Not Found response will be returned

Authorizations:
basic_authhmac_auth
path Parameters
key_id
required
string
Example: 7ca628a8-08b0-4e42-aeb8-960b37049c31

Unique identifier of the signature key.

Responses

Response samples

Content type
application/json
{
  • "key_id": "7ca628a8-08b0-4e42-aeb8-960b37049c31",
  • "cipher": "RSA",
  • "digest": "SHA224",
  • "created": "2018-01-18T10:16:12.364Z",
  • "enabled": false
}

Delete signature key

Delete a signature key using the key_id returned in the create signature key endpoint.

A successful request for the delete signature key endpoint will return an empty response body.

Note: If an invalid or non-existent key_id parameter is specified in the request, then an HTTP 404 Not Found response will be returned

Authorizations:
basic_authhmac_auth
path Parameters
key_id
required
string
Example: 7ca628a8-08b0-4e42-aeb8-960b37049c31

Unique identifier of the signature key.

Responses

Response samples

Content type
application/json
{
  • "message": "This feature has not been enabled in your account."
}

Enable signature key

Enable a signature key using the key_id returned in the create signature key endpoint. There is only one signature key is enabled at the one moment in time. So if you enable the new signature key, the old one will be disabled.

The most basic body has the following structure:

{
    "key_id": "7ca628a8-08b0-4e42-aeb8-960b37049c31"
}

The response body of a successful PATCH request to enable signature key endpoint will contain the enabled properties with the value is true as follows:

{
    "key_id": "7ca628a8-08b0-4e42-aeb8-960b37049c31",
    "cipher": "RSA",
    "digest": "SHA224",
    "created": "2018-01-18T10:16:12.364Z",
    "enabled": true
}

Note: If an invalid or non-existent key_id parameter is specified in the request, then an HTTP 404 Not Found response will be returned

Authorizations:
basic_authhmac_auth
header Parameters
Accept
required
string
Example: application/json

Requested response media type.

Request Body schema: application/json
required

Request body.

key_id
required
string

Responses

Request samples

Content type
application/json
{
  • "key_id": "7ca628a8-08b0-4e42-aeb8-960b37049c31"
}

Response samples

Content type
application/json
{
  • "key_id": "7ca628a8-08b0-4e42-aeb8-960b37049c31",
  • "cipher": "RSA",
  • "digest": "SHA224",
  • "created": "2018-01-18T10:16:12.364Z",
  • "enabled": true
}

Get enabled signature key

Retrieve the currently enabled signature key.

A successful request for the get enabled signature key endpoint will return a response body as follows:

{
    "key_id": "7ca628a8-08b0-4e42-aeb8-960b37049c31",
    "cipher": "RSA",
    "digest": "SHA224",
    "created": "2018-01-18T10:16:12.364Z",
    "enabled": true
}

Note: If there is no enabled signature key, then an HTTP 404 Not Found response will be returned

Authorizations:
basic_authhmac_auth

Responses

Response samples

Content type
application/json
{
  • "key_id": "7ca628a8-08b0-4e42-aeb8-960b37049c31",
  • "cipher": "RSA",
  • "digest": "SHA224",
  • "created": "2018-01-18T10:16:12.364Z",
  • "enabled": true
}

Disable the current enabled signature key

Disable the current enabled signature key.

A successful request for the disable the current enabled signature key endpoint will return no content when successful. If there is an enabled key, it will be disabled; and the 204 status code is returned. If there is no key or no enabled key, the 204 status code is also returned.

Authorizations:
basic_authhmac_auth

Responses

Response samples

Content type
application/json
{
  • "message": "This feature has not been enabled in your account."
}

Messaging Reports

The Sinch Reports API provides a number of endpoints for running reports of messages sent and received through a Sinch Account. The API allows two kinds of reports, Detailed Reports and Summary Reports.

Detailed reports list all messages and the details of each message sent or received in a specified time period. Summary reports allow inbound and outbound message data to be aggregated on a number of dimensions.

Metadata Keys

Returns a list of metadata keys.

Authorizations:
basic_authhmac_auth
Request Body schema: application/json

Request body.

page
number

Page number for paging through paginated result sets.

page_size
number

Number of results to return in a page for paginated result sets.

start_date
required
string

Start date time for report window. By default, the timezone for this parameter will be taken from the account settings for the account associated with the credentials used to make the request, or the account included in the Account parameter. This can be overridden using the timezone parameter per request. The date must be in ISO8601 format.

end_date
required
string

End date time for report window. By default, the timezone for this parameter will be taken from the account settings for the account associated with the credentials used to make the request, or the account included in the Account parameter. This can be overridden using the timezone parameter per request. The date must be in ISO8601 format.

direction
string (MessageDirection)
Enum: "inbound" "outbound" "all"

The type of messages to include in the report.

accounts
Array of strings

Filter results by a specific account. By default results will be returned for the account associated with the authentication credentials and all sub-accounts.

Responses

Request samples

Content type
application/json
{
  • "page": 2,
  • "page_size": 15,
  • "start_date": "2022-12-12T00:00:00.000z",
  • "end_date": "2022-12-14T00:00:00.000z",
  • "direction": "all",
  • "accounts": [
    ]
}

Response samples

Content type
application/json
{
  • "keys": [
    ]
}

Post detail report

Generates a report listing all sent and/or received messages within a specified time period.

Authorizations:
basic_authhmac_auth
Request Body schema: application/json

Request body.

start_date
required
string

Start date time for report window. By default, the timezone for this parameter will be taken from the account settings for the account associated with the credentials used to make the request, or the account included in the Account parameter. This can be overridden using the timezone parameter per request. The date must be in ISO8601 format.

end_date
required
string

End date time for report window. By default, the timezone for this parameter will be taken from the account settings for the account associated with the credentials used to make the request, or the account included in the Account parameter. This can be overridden using the timezone parameter per request. The date must be in ISO8601 format, and after the requested start_date.

direction
string (MessageDirection)
Enum: "inbound" "outbound" "all"

The type of messages to include in the report.

timezone
string

The timezone of the messages to include, using the name of the region.

source
string

Filter results by source address.

sources
Array of strings

Filter results by multiple source addresses. This property overrides the source parameter.

destination
string

Filter results by destination address.

destinations
Array of strings

Filter results by multiple destination addresses. This property overrides the destination parameter.

metadata_key
string

Filter results for messages that include a metadata key.

metadata_value
string

Filter results for messages that include a metadata key containing this value. If this parameter is provided, the metadata_key parameter must also be provided.

metadata_values
Array of strings

Filter results for messages that include a metadata key containing these values. This parameter overrides the metadata_value property. If this parameter is provided, the metadata_key parameter must also be provided.

accounts
Array of strings

Filter results by a specific account. By default results will be returned for the account associated with the authentication credentials and all sub-accounts.

status
Array of strings (MessageStatus)
Items Enum: "UNDEFINED" "QUEUED" "PROCESSING" "PROCESSED" "FAILED" "SCHEDULED" "CANCELLED" "DELIVERED" "EXPIRED" "ENROUTE" "HELD" "SUBMITTED" "REJECTED" "READ"

An array of message statuses

opt_out
string

Filter the report to only include messages that triggered an opt-out

mms_media
string

Filter results by mms media.

message_format
Array of strings (MessageType)
Items Enum: "MMS" "SMS" "TTS" "RCS" "CHANNEL"

Format of message type.

channels
Array of strings
Items Enum: "SMS" "MMS" "TTS" "RCS" "WHATSAPP" "CHANNEL"

Filter the report by one or more message channels.

page
number

Page number for paging through paginated result sets.

page_size
number

Number of results to return in a page for paginated result sets.

Responses

Request samples

Content type
application/json
{
  • "start_date": "2022-12-12T00:00:00.000z",
  • "end_date": "2022-12-14T00:00:00.000z",
  • "direction": "all",
  • "timezone": "Australia/Sydney",
  • "source": "+61555555555",
  • "sources": [
    ],
  • "destination": "+61555555555",
  • "destinations": [
    ],
  • "metadata_key": "broadcastId",
  • "metadata_value": "ABC",
  • "metadata_values": [
    ],
  • "accounts": [
    ],
  • "status": [
    ],
  • "opt_out": "true",
  • "mms_media": "true",
  • "message_format": [
    ],
  • "channels": [
    ],
  • "page": 0,
  • "page_size": 20
}

Response samples

Content type
application/json
{
  • "messages": [
    ],
  • "pagination": {
    }
}

Post insight report

Create report summary containing total number of sent, received and billing units, using pre-calculated data to improve performance.

Authorizations:
basic_authhmac_auth
Request Body schema: application/json

Request body.

start_date
required
string

Start date time for report window. By default, the timezone for this parameter will be taken from the account settings for the account associated with the credentials used to make the request, or the account included in the Account parameter. This can be overridden using the timezone parameter per request. The date must be in ISO8601 format and may include precise time values (e.g., milliseconds).

end_date
required
string

End date time for report window. By default, the timezone for this parameter will be taken from the account settings for the account associated with the credentials used to make the request, or the account included in the Account parameter. This can be overridden using the timezone parameter per request. The date must be in ISO8601 format, and after the requested start_date and may include precise time values (e.g., milliseconds).

timezone
required
string

The timezone of the messages to include, using the name of the region.

direction
string (MessageDirection)
Enum: "inbound" "outbound" "all"

The type of messages to include in the report.

source
string

Filter results by source address.

sources
Array of strings

Filter results by multiple source addresses. This property overrides the source parameter.

destination
string

Filter results by destination address.

destinations
Array of strings

Filter results by multiple destination addresses. This property overrides the destination parameter.

metadata_key
string

Filter results for messages that include a metadata key. Can be used independently for searching.

metadata_value
string

Filter results for messages that include a metadata key containing this value. If this parameter is provided, the metadata_key parameter must also be provided. Cannot be used together with metadata_values.

metadata_values
Array of strings

Filter results for messages that include a metadata key containing these values. Must be used together with metadata_key. Cannot be used together with metadata_value.

accounts
Array of strings

Filter results by a specific account. By default results will be returned for the account associated with the authentication credentials and all sub-accounts.

status
Array of strings (MessageStatus)
Items Enum: "UNDEFINED" "QUEUED" "PROCESSING" "PROCESSED" "FAILED" "SCHEDULED" "CANCELLED" "DELIVERED" "EXPIRED" "ENROUTE" "HELD" "SUBMITTED" "REJECTED" "READ"

An array of message statuses.

opt_out
string

Filter the report to only include messages that triggered an opt-out

channels
Array of strings
Items Enum: "SMS" "MMS" "TTS" "RCS" "WHATSAPP" "CHANNEL"

Filter the report by one or more message channels. Supported from 14/Aug/2025, and filtering by channels is available only for reports starting from this date.

group_by
Array of strings (GroupByInsightField)
Items Enum: "ACCOUNT" "DAY" "WEEK" "MONTH" "YEAR" "METADATA_KEY" "METADATA_VALUE" "STATUS" "COUNTRY" "CHANNEL" "POSTBACK_DATA"

Defines available fields for grouping insights reports. COUNTRY and CHANNEL are supported from 14/Aug/2025, and POSTBACK_DATA is supported from 16/Sep/2025, with data available only from those dates onward.

Responses

Request samples

Content type
application/json
{
  • "start_date": "2022-12-12T01:01:01.001z",
  • "end_date": "2022-12-14T01:01:01.001z",
  • "timezone": "Australia/Sydney",
  • "direction": "all",
  • "source": "+61555555555",
  • "sources": [
    ],
  • "destination": "+61555555555",
  • "destinations": [
    ],
  • "metadata_key": "broadcastId",
  • "metadata_value": "ABC",
  • "metadata_values": [
    ],
  • "accounts": [
    ],
  • "status": [
    ],
  • "opt_out": "true",
  • "channels": [
    ],
  • "group_by": [
    ]
}

Response samples

Content type
application/json
{
  • "summaries": [
    ],
  • "total_sent": 100,
  • "total_received": 50,
  • "total_billing_units": 150,
  • "total_opt_out": 10
}

Post async detail report

Generates an asynchronous report listing all sent and/or received messages within a specified time period.

Authorizations:
basic_authhmac_auth
Request Body schema: application/json
required

Request body.

start_date
required
string

Start date time for report window. By default, the timezone for this parameter will be taken from the account settings for the account associated with the credentials used to make the request, or the account included in the Account parameter. This can be overridden using the timezone parameter per request. The date must be in ISO8601 format.

end_date
required
string

End date time for report window. By default, the timezone for this parameter will be taken from the account settings for the account associated with the credentials used to make the request, or the account included in the Account parameter. This can be overridden using the timezone parameter per request. The date must be in ISO8601 format.

timezone
string

The timezone of the messages to include, using the name of the region.

direction
string (MessageDirection)
Enum: "inbound" "outbound" "all"

The type of messages to include in the report.

source
string

Filter results by source address.

sources
Array of strings

Filter results by multiple source addresses. This property overrides the source parameter.

destination
string

Filter results by destination address.

destinations
Array of strings

Filter results by multiple destination addresses. This property overrides the destination parameter.

addresses
Array of strings

Filter messages where source OR destination matches one of the provided values. This parameter can only be set when "direction" is "all" and cannot be used in the same request as the "source", "destination", "sources", or "destinations" parameters.

metadata_key
string

Filter results for messages that include a metadata key. Can be used independently for searching.

metadata_value
string

Filter results for messages that include a metadata key containing this value. If this parameter is provided, the metadata_key parameter must also be provided. Cannot be used together with metadata_values.

metadata_values
Array of strings

Filter results for messages that include a metadata key containing these values. Must be used together with metadata_key. Cannot be used together with metadata_value.

accounts
Array of strings

Filter results by a specific account. By default results will be returned for the account associated with the authentication credentials and all sub-accounts.

status
Array of strings (MessageStatus)
Items Enum: "UNDEFINED" "QUEUED" "PROCESSING" "PROCESSED" "FAILED" "SCHEDULED" "CANCELLED" "DELIVERED" "EXPIRED" "ENROUTE" "HELD" "SUBMITTED" "REJECTED" "READ"
opt_out
string

Filter the report to only include messages that triggered an opt-out

message_format
Array of strings (MessageType)
Items Enum: "MMS" "SMS" "TTS" "RCS" "CHANNEL"

Format of message type.

Array of objects (asyncfieldsrequest)

Can be used for async detail report to select the fields to export csv files

Array of objects (deliveryOptionsBody)

A list of options to configure the delivery of the report.

Responses

Request samples

Content type
application/json
{
  • "start_date": "2022-12-12T00:00:00.000z",
  • "end_date": "2022-12-14T00:00:00.000z",
  • "timezone": "Australia/Sydney",
  • "direction": "all",
  • "source": "+61555555555",
  • "sources": [
    ],
  • "destination": "+61555555555",
  • "destinations": [
    ],
  • "addresses": [
    ],
  • "metadata_key": "broadcastId",
  • "metadata_value": "ABC",
  • "metadata_values": [
    ],
  • "accounts": [
    ],
  • "status": [
    ],
  • "opt_out": "true",
  • "message_format": [
    ],
  • "fields": [
    ],
  • "delivery_options": [
    ]
}

Response samples

Content type
application/json
{
  • "report_id": "51f0097f-90b2-4a59-ad88-a0fd93abaa82"
}

Post async summary report

Creates an asynchronous report summary containing total number of sent, received and billing units.

Authorizations:
basic_authhmac_auth
Request Body schema: application/json

Request body.

start_date
required
string

Start date time for report window. By default, the timezone for this parameter will be taken from the account settings for the account associated with the credentials used to make the request, or the account included in the Account parameter. This can be overridden using the timezone parameter per request. The date must be in ISO8601 format.

end_date
required
string

End date time for report window. By default, the timezone for this parameter will be taken from the account settings for the account associated with the credentials used to make the request, or the account included in the Account parameter. This can be overridden using the timezone parameter per request. The date must be in ISO8601 format.

timezone
string

The timezone of the messages to include, using the name of the region.

direction
string (MessageDirection)
Enum: "inbound" "outbound" "all"

The type of messages to include in the report.

source
string

Filter results by source address.

sources
Array of strings

Filter results by multiple source addresses. This property overrides the source parameter.

destination
string

Filter results by destination address.

destinations
Array of strings

Filter results by multiple destination addresses. This property overrides the destination parameter.

metadata_key
string

Filter results for messages that include a metadata key. Can be used independently for searching.

metadata_value
string

Filter results for messages that include a metadata key containing this value. If this parameter is provided, the metadata_key parameter must also be provided. Cannot be used together with metadata_values.

metadata_values
Array of strings

Filter results for messages that include a metadata key containing these values. Must be used together with metadata_key. Cannot be used together with metadata_value.

accounts
Array of strings

Filter results by a specific account. By default results will be returned for the account associated with the authentication credentials and all sub-accounts.

status
Array of strings (MessageStatus)
Items Enum: "UNDEFINED" "QUEUED" "PROCESSING" "PROCESSED" "FAILED" "SCHEDULED" "CANCELLED" "DELIVERED" "EXPIRED" "ENROUTE" "HELD" "SUBMITTED" "REJECTED" "READ"

A list of message statuses to filter the report by.

opt_out
string

Filter the report to only include messages that triggered an opt-out

group_by
Array of strings (GroupByField)
Items Enum: "ACCOUNT" "DAY" "WEEK" "MONTH" "YEAR" "METADATA_KEY" "METADATA_VALUE" "STATUS"

Group results by a list of values, from the enumerable table above.

Array of objects (deliveryOptionsBody)

A list of options to configure the delivery of the report.

Responses

Request samples

Content type
application/json
{
  • "start_date": "2022-12-12T00:00:00.000z",
  • "end_date": "2022-12-14T00:00:00.000z",
  • "timezone": "Australia/Sydney",
  • "direction": "all",
  • "source": "+61555555555",
  • "sources": [
    ],
  • "destination": "+61555555555",
  • "destinations": [
    ],
  • "metadata_key": "broadcastId",
  • "metadata_value": "ABC",
  • "metadata_values": [
    ],
  • "accounts": [
    ],
  • "status": [
    ],
  • "opt_out": "false",
  • "group_by": [
    ],
  • "delivery_options": [
    ]
}

Response samples

Content type
application/json
{
  • "report_id": "51f0097f-90b2-4a59-ad88-a0fd93abaa82"
}

Get async detail report status

Retrieves the status of a detail report.

Authorizations:
basic_authhmac_auth
query Parameters
report_id
required
string
Example: report_id=abc

The ID of the detail report to retrieve.

Responses

Response samples

Content type
application/json
{
  • "report_status": "DONE"
}

Get async detail fields

Can be used for async detail report to select the fields to export csv files

Authorizations:
basic_authhmac_auth
Request Body schema: application/json

Request body.

page
number

Page number for paging through paginated result sets.

page_size
number

Number of results to return in a page for paginated result sets.

start_date
required
string

Start date time for report window. By default, the timezone for this parameter will be taken from the account settings for the account associated with the credentials used to make the request, or the account included in the Account parameter. This can be overridden using the timezone parameter per request. The date must be in ISO8601 format.

end_date
required
string

End date time for report window. By default, the timezone for this parameter will be taken from the account settings for the account associated with the credentials used to make the request, or the account included in the Account parameter. This can be overridden using the timezone parameter per request. The date must be in ISO8601 format.

direction
string (MessageDirection)
Enum: "inbound" "outbound" "all"

The type of messages to include in the report.

accounts
Array of strings

Filter results by a specific account. By default results will be returned for the account associated with the authentication credentials and all sub-accounts.

Responses

Request samples

Content type
application/json
{
  • "page": 1,
  • "page_size": 50,
  • "start_date": "2020-05-28T10:27:46.259Z",
  • "end_date": "2020-06-28T10:27:46.259Z"
}

Response samples

Content type
application/json
{
  • "fields": [
    ]
}

Get async report history

Returns a list of asynchronous reports that have been requested by the current account.

Authorizations:
basic_authhmac_authbearer_auth
query Parameters
page_size
integer
Example: page_size=10

The number of items to return per page.

page_token
string
Example: page_token=eyJyZXBvcnRJZCI6IjUxZjAwOTdmLTkwYjItNGE1OS1hZDg4LWEwZmQ5M2FiYWE4MiJ9

A pagination token returned from a previous call. Pass this to retrieve the next page of results.

report_name
string
Example: report_name=My Detail Report

Filter results by report name.

status
Array of strings
Items Enum: "REQUESTED" "RUNNING" "FAILED" "CANCELLED" "DONE"

Filter results by report status. Multiple statuses can be specified.

start_date
string <date-time>
Example: start_date=2020-05-28T10:27:46.259Z

Filter reports requested on or after this date (ISO 8601).

end_date
string <date-time>
Example: end_date=2020-06-28T10:27:46.259Z

Filter reports requested on or before this date (ISO 8601).

sort_direction
string
Enum: "ASCENDING" "DESCENDING"
Example: sort_direction=DESCENDING

Sort direction for the results.

Responses

Response samples

Content type
application/json
{
  • "items": [
    ],
  • "next_page_token": "eyJyZXBvcnRJZCI6IjUxZjAwOTdmLTkwYjItNGE1OS1hZDg4LWEwZmQ5M2FiYWE4MiJ9"
}

Get async report download URL

Returns a temporary pre-signed URL for downloading the generated report. The URL allows customers to securely download the report file directly using the provided reportId.

Authorizations:
basic_authhmac_authbearer_auth
path Parameters
reportId
required
string <uuid>
Example: 51f0097f-90b2-4a59-ad88-a0fd93abaa82

The ID of the report to download.

Responses

Response samples

Content type
application/json
{}

Scheduled detail report

Create scheduled report in detail containing total number of sent, received and billing units.

Authorizations:
basic_authhmac_auth
Request Body schema: application/json
required

Request body.

label
required
string

The label of the report schedule

required
object (schedule)

The time schedule of a scheduled report

required
object (scheduleddetailrequest)

A scheduled detail report request

metadata
object

Metadata for the message specified as a set of key value pairs, each key can be up to 100 characters long and each value can be up to 256 characters long

{
   "myKey": "myValue",
   "anotherKey": "anotherValue"
}

Responses

Request samples

Content type
application/json
{
  • "label": "Weekly Report",
  • "schedule": {
    },
  • "report": {
    },
  • "metadata": [
    ]
}

Response samples

Content type
application/json
{
  • "scheduled_report_id": "51f0097f-90b2-4a59-ad88-a0fd93abaa82"
}

Update a scheduled detail report

Updates a selected scheduled report in detail, which contains a total number of sent, received and billing units.

Authorizations:
basic_authhmac_auth
path Parameters
scheduled_id
required
string
Example: e6fb8282-c7c3-4367-8590-6c77ddb11c3e

The ID of the scheduled report to update.

Request Body schema: application/json
required

Request body.

label
required
string

The label of the report schedule

required
object (schedule)

The time schedule of a scheduled report

required
object (scheduleddetailrequest)

A scheduled detail report request

Responses

Request samples

Content type
application/json
{
  • "label": "Weekly Report",
  • "schedule": {
    },
  • "report": {
    }
}

Response samples

Content type
application/json
{
  • "label": "Weekly Report",
  • "schedule": {
    },
  • "report": {
    },
  • "scheduled_report_id": "43928f76-c381-4943-8619-f10460005898",
  • "message_type": "all",
  • "report_type": "detail",
  • "metadata": [
    ]
}

Scheduled summary report

Create scheduled report summary containing total number of sent, received and billing units.

Authorizations:
basic_authhmac_auth
Request Body schema: application/json
required

Request body.

label
required
string

The label of the report schedule

required
object (schedule)

The time schedule of a scheduled report

required
object (scheduledsummaryrequest)

A scheduled summary report request

metadata
object

Metadata for the message specified as a set of key value pairs, each key can be up to 100 characters long and each value can be up to 256 characters long

{
   "myKey": "myValue",
   "anotherKey": "anotherValue"
}

Responses

Request samples

Content type
application/json
{
  • "label": "Weekly Report",
  • "schedule": {
    },
  • "report": {
    },
  • "metadata": [
    ]
}

Response samples

Content type
application/json
{
  • "scheduled_report_id": "51f0097f-90b2-4a59-ad88-a0fd93abaa82"
}

Update a scheduled summary report

Updates a selected scheduled report summary, which contains a total number of sent, received and billing units.

Authorizations:
basic_authhmac_auth
path Parameters
scheduled_id
required
string
Example: e6fb8282-c7c3-4367-8590-6c77ddb11c3e

The ID of the scheduled report to update.

Request Body schema: application/json
required

Request body.

label
required
string

The label of the report schedule

required
object (schedule)

The time schedule of a scheduled report

required
object (scheduledsummaryrequest)

A scheduled summary report request

Responses

Request samples

Content type
application/json
{
  • "label": "Weekly Report",
  • "schedule": {
    },
  • "report": {
    }
}

Response samples

Content type
application/json
{
  • "label": "Weekly Report",
  • "schedule": {
    },
  • "report": {
    },
  • "scheduled_report_id": "43928f76-c381-4943-8619-f10460005898",
  • "message_type": "all",
  • "report_type": "detail",
  • "metadata": [
    ]
}

Get active reports

Retrieves all ACTIVE scheduled reports of a provided account.

Authorizations:
basic_authhmac_auth
query Parameters
page_size
number [ 1 .. 100 ]
Example: page_size=20

Number of results to return in a page for paginated result sets.

page_token
string
Example: page_token=eyJwYWdlIjoyfQ

Returned by Chronos service

Responses

Response samples

Content type
application/json
{
  • "page_token": "abc123",
  • "page_size": 20,
  • "data": [
    ]
}

Get scheduled report by id

Retrieves a scheduled report by providing its id.

Authorizations:
basic_authhmac_auth
path Parameters
scheduled_id
required
string
Example: e6fb8282-c7c3-4367-8590-6c77ddb11c3e

The ID of the scheduled report to retrieve.

Responses

Response samples

Content type
application/json
{
  • "label": "Weekly Report",
  • "report": {
    },
  • "schedule": {
    },
  • "scheduled_report_id": "43928f76-c381-4943-8619-f10460005898",
  • "message_type": "all",
  • "report_type": "detail"
}

Delete scheduled report by id

Deletes a scheduled report by providing its id.

Authorizations:
basic_authhmac_auth
path Parameters
scheduled_id
required
string
Example: e6fb8282-c7c3-4367-8590-6c77ddb11c3e

The ID of the scheduled report to delete.

Responses

Contacts

The API provides access to two main resources:

  • Contacts: Data associated with the individuals you need to contact.
  • Lists: Groups of contacts created for specific purposes.
  • Custom Fields: Additional fields that can be tailored to complement the basic contact fields.

Create a contact

Creates a new contact in the account.

Authorizations:
basic_authhmac_auth
Request Body schema: application/json
required
firstName
string

Contact first name

lastName
string

Contact last name

alias
string

Contact alias. Used as an alternative name for your contact, as well as an email handle for email to sms

dateOfBirth
string <date>

Date of birth

country
string

Country

state
string

State

location
string

Location

note
string

Note

required
Array of objects (CreateContactChannelRequest)

Contact channels

Array of objects (CreateContactListRequest)

Contact lists

Array of objects (CreateCustomFieldRequest)

Contact custom fields

Responses

Request samples

Content type
application/json
{
  • "firstName": "Adam",
  • "lastName": "Smith",
  • "alias": "user1234",
  • "dateOfBirth": "2022-08-18",
  • "country": "US",
  • "state": "CA",
  • "location": "Sunset Blvd",
  • "note": "Note",
  • "channels": [
    ],
  • "lists": [
    ],
  • "customFields": [
    ]
}

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Get contacts page

Retrieves a paginated list of contacts.

Authorizations:
basic_authhmac_auth
query Parameters
required
object (GetContactsRequest)

Pagination and filter options for the contacts page (page tokens, page size, list/contact/channel filters).

Responses

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Get a single contact

Retrieves details for a single contact by ID.

Authorizations:
basic_authhmac_auth
path Parameters
contactId
required
string <uuid>
Example: 3fa85f64-5717-4562-b3fc-2c963f66afa6

Contact id in UUID format

Responses

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Delete a contact

Deletes a contact from the account.

Authorizations:
basic_authhmac_auth
path Parameters
contactId
required
string <uuid>
Example: 3fa85f64-5717-4562-b3fc-2c963f66afa6

Contact id in UUID format

Responses

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Update a contact

Updates an existing contact.

Authorizations:
basic_authhmac_auth
path Parameters
contactId
required
string <uuid>
Example: 3fa85f64-5717-4562-b3fc-2c963f66afa6

Contact id in UUID format

Request Body schema: application/json
required
firstName
string

Contact first name

lastName
string

Contact last name

alias
string

Contact alias. Used as an alternative name for your contact, as well as an email handle for email to sms

dateOfBirth
string <date>

Date of birth

country
string

Country

state
string

State

location
string

Location

note
string

Note

Array of objects (UpdateContactChannelRequest)

Contact channels

Array of objects (CreateContactListRequest)

Contact lists

Array of objects (CreateCustomFieldRequest)

Contact custom fields

Responses

Request samples

Content type
application/json
{
  • "firstName": "Adam",
  • "lastName": "Smith",
  • "alias": "user1234",
  • "dateOfBirth": "2022-08-18",
  • "country": "US",
  • "state": "CA",
  • "location": "Sunset Blvd",
  • "note": "Note",
  • "channels": [
    ],
  • "lists": [
    ],
  • "customFields": [
    ]
}

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Create a contact list

Creates a new contact list.

Authorizations:
basic_authhmac_auth
Request Body schema: application/json
required
name
required
string

Group name

alias
string

Group alias

Responses

Request samples

Content type
application/json
{
  • "name": "My group",
  • "alias": "Group1"
}

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Get contact lists page

Retrieves a paginated list of contact lists.

Authorizations:
basic_authhmac_auth
query Parameters
required
object (GetListsRequest)

Pagination and filter options for the contact lists page (page tokens, page size, and related filters).

Responses

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Get a single contact list

Retrieves details for a single contact list by ID.

Authorizations:
basic_authhmac_auth
path Parameters
listId
required
string <uuid>
Example: 025e93d3-051b-43f9-b12e-4b5842228dee

Contact list id in UUID format

Responses

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Delete a contact list

Deletes a contact list.

Authorizations:
basic_authhmac_auth
path Parameters
listId
required
string <uuid>
Example: 025e93d3-051b-43f9-b12e-4b5842228dee

Contact list id in UUID format

Responses

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Update a contact list

Updates an existing contact list.

Authorizations:
basic_authhmac_auth
path Parameters
listId
required
string <uuid>
Example: 025e93d3-051b-43f9-b12e-4b5842228dee

Contact list id in UUID format

Request Body schema: application/json
required
name
required
string

Contact list name

alias
string

Contact list alias

Responses

Request samples

Content type
application/json
{
  • "name": "My list",
  • "alias": "List1"
}

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Add or remove multiple contacts to/from a list

Adds or removes multiple contacts to or from a contact list.

Authorizations:
basic_authhmac_auth
path Parameters
listId
required
string <uuid>
Example: 025e93d3-051b-43f9-b12e-4b5842228dee

Contact list id in UUID format

Request Body schema: application/json
required
contactsToAddIds
Array of strings <uuid> [ 0 .. 1000 ] items [ items <uuid > ]
contactsToRemoveIds
Array of strings <uuid> [ 0 .. 1000 ] items [ items <uuid > ]

Responses

Request samples

Content type
application/json
{
  • "contactsToAddIds": [
    ],
  • "contactsToRemoveIds": [
    ]
}

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Add contact to a list

Adds a contact to a contact list.

Authorizations:
basic_authhmac_auth
path Parameters
listId
required
string <uuid>
Example: 025e93d3-051b-43f9-b12e-4b5842228dee

Contact list id in UUID format

contactId
required
string <uuid>
Example: 4a03d2d8-1f85-463f-bdb4-2891c17258a7

Contact id to remove in UUID format

Responses

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Remove contact from the contact list

Removes a contact from a contact list.

Authorizations:
basic_authhmac_auth
path Parameters
listId
required
string <uuid>
Example: 025e93d3-051b-43f9-b12e-4b5842228dee

Contact list id in UUID format

contactId
required
string <uuid>
Example: 4a03d2d8-1f85-463f-bdb4-2891c17258a7

Contact id to add in UUID format

Responses

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Create a custom field

Creates a new custom field for contacts.

Authorizations:
basic_authhmac_auth
Request Body schema: application/json
required
label
required
string

Custom field label

mergeTag
required
string

Custom field merge tag

maxLength
required
integer <int32>

Custom field max length

type
required
string
Enum: "DATE" "NUMBER" "PHONE" "TEXT" "URL" "ZIP_CODE" "NAME" "EMAIL"

Custom field type

Responses

Request samples

Content type
application/json
{
  • "label": "Contact name",
  • "mergeTag": "contact_name",
  • "maxLength": 30,
  • "type": "DATE"
}

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Get custom fields page

Retrieves a paginated list of custom fields.

Authorizations:
basic_authhmac_auth
query Parameters
required
object (GetCustomFieldsRequest)

Pagination and filter options for the custom fields page (page tokens, page size, and related filters).

Responses

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Get a single custom field

Retrieves details for a single custom field by ID.

Authorizations:
basic_authhmac_auth
path Parameters
customFieldId
required
string <uuid>
Example: 025e93d3-051b-43f9-b12e-4b5842228dee

Custom field id in UUID format

Responses

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Delete a custom field

Deletes a custom field.

Authorizations:
basic_authhmac_auth
path Parameters
customFieldId
required
string <uuid>
Example: 025e93d3-051b-43f9-b12e-4b5842228dee

Custom field id in UUID format

Responses

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Update a custom field

Updates an existing custom field.

Authorizations:
basic_authhmac_auth
path Parameters
customFieldId
required
string <uuid>
Example: 025e93d3-051b-43f9-b12e-4b5842228dee

Custom field id in UUID format

Request Body schema: application/json
required
label
string

Custom field label

maxLength
integer <int32>

Custom field max length

Responses

Request samples

Content type
application/json
{
  • "label": "Contact name",
  • "maxLength": 30
}

Response samples

Content type
application/json
{
  • "uuid": "095be615-a8ad-4c33-8e9c-c7612fbf6c9f",
  • "type": "validation",
  • "title": "string",
  • "detail": "string",
  • "invalidFields": [
    ]
}

Mobile Landing Pages (beta)

The mobile landing pages (MLP) API provides the facilities to create mobile landing pages and sends them to recipients. This API is currently in beta.

Note: This API is only available in the APAC region.

Concepts

The approach to creating mobile landing pages involves creating a Campaign and sending them to one or more Recipients. A campaign consists of the baseline configuration of a mobile landing page and message that will be generated and sent to each recipient.

Parameters

Campaign and Recipients can contain parameters. These parameters are used to customise the generated landing page and the message that is to be sent to each user. Campaign and Recipient parameters are merged to form a complete set when processing a recipient.

When resolving parameters sets, Recipient parameters override Campaign parameters with the same name.

Parameter names used within the template have an associated type, which will be validated when creating the Campaign or sending it to Recipients. You are free to define additional parameters for your own uses, such as when specifying the message.

The SMS message that is to be sent to each user is defined at the Campaign level.

The message itself can consist of parameter references surrounded in ${...}, for example:

Hello ${firstName} ${lastName}, this is your message.

Sending Mobile Landing Pages

From end to end, sending a Mobile Landing Pages involves the following steps:

Step 1: Create a campaign

Choose a template from the template catalogue, and work out what you are going to specify for the required parameters for that template. You will then use the Create new campaign endpoint to create the campaign. The following example specifies the desired parameters for the template_id and sets up a message template:

{
    "template_id": "ac895f01-3149-4bf8-a8fe-01d3b8a9ba97",
    "parameters": {
      "pageTitle": "The page title",
      "pageText": "The body text",
      "imageUrl": "https://example.com/image.jpg",
      "secondaryImageUrl": "https://www.example.com/optional_secondary_image.jpg",
      "buttonLink": "https://example.com/",
      "buttonText": "Call to Action Button Text",
      "secondaryButtonLink": "https://example.com/optional_secondary_button",
      "secondaryButtonText": "Secondary Call to Action Button"
    },
    "message": {
      "content": "Hello ${firstName} ${lastName}, this is the SMS message body",
      "metadata": {
        "key": "value"
      }
    }
}

Inside the message content the {} curly braces indicate template placeholders. These are the names of the parameters you will need to specify for the message when you send to your recipients.

Step 2: Send to recipients

Using the Send campaign to recipients endpoint, you can specify the id of your campaign in the path and a array of recipients as the payload. Each recipient will include an E.164 formatted (international) phone number, an optional scheduled time, and values of any recipient scoped template parameters you may have created. In the following example the recipients have been scoped with the template parameters above:

{
  "recipients": [
    {
      "number": "+6140000000",
      "parameters": { "firstName":"Joe", "lastName","Bloe" }
    },
    {
      "number": "+6141111111",
      "parameters": { "firstName":"Jane", "lastName","Doe" }
    }
  ]
}

Landing Page Store

The Landing Page Store is used by the Hub portal to store landing page templates that have been configured using the visual interface. This means that you can optionally use this data store to programatically send landing pages that have been designed and configured in the hub.

If you have made a landing page in the hub, use the Get landing pages endpoint to find the landing pages you have made, along with the template and parameters that have been configured. You will then need to copy those template and parameters into a campaign.

Template Parameters

Each template will have different required parameters, shown in the Templates section. The following is a description of the requirements of each parameter when included in a template.

Parameter Required Tyep Description
imageBackgroundUrl Optional - depends on MLP template. image Width: 750 pixels, height: 1624 pixels, size: less than 300 kB, type: png, gif, or jpg
barcodeValue Optional - depends on MLP template. text Alphanumeric string. We will use CODE-128 format 1-D barcode.
barcodeDisplayValue Optional - defaults to true. Otherwise, use false text Indicates whether the barcode value is shown below the barcode image
barcodeHeight Optional text
barcodeMargin Optional text
barcodeWidth Optional text
barcodeLineColor Optional - each template has it's own default value text Indicate the color of bar code. Use a color name(eg. 'red', 'green'), or a hex value(eg. '#F0F8FF')
pageText html For personalisation, use the following format: "Hi ${firstName}, thanks for visiting…"
pageTextColor Optional - each template has it's own default value text Indicate the color of page text. Use a color name(eg. 'red', 'green'), or a hex value(eg. '#F0F8FF')
imageHeaderUrl Optional - depends on MLP template image Width: 750 pixels, height: 375 pixels, size: less than 300 kB, type: png, gif, or jpg.
headline text For personalisation, use the following format: "Hi ${firstName}, thanks for visiting…". Specifications: 60 characters or less recommended
headlineColor Optional - each template has it's own default value text Indicate the color of headline. Use a color name(eg. 'red', 'green'), or a hex value(eg. '#F0F8FF')
pageTitle text HTML page title shown on browser tab. Specifications: 60 characters or less recommended.
imageLogoUrl Optional image Specifications: width: 300 pixels, height: 120 pixels, size: less than 300 kB, type: png, gif, or jpg
logoLink Optional url For personalisation, use the following format: "https://example.com/?cid=${customerId}"
primaryButtonLink url For personalisation, use the following format: "https://example.com/?cid=${customerId}"
primaryButtonText text For personalisation, use the following format: "${firstName}, shop now". Specifications: 36 characters or less recommended
primaryButtonTextColor Optional - each template has it's own default value text Indicate the color of primary button text. Use a color name(eg. 'red', 'green'), or a hex value(eg. '#F0F8FF')
primaryButtonBackgroundColor Optional - each template has it's own default value text Indicate the background color of primary button. Use a color name(eg. 'red', 'green'), or a hex value(eg. '#F0F8FF')
secondaryButtonLink Optional - depends on MLP template url For personalisation, use the following format: "https://example.com/?cid=${customerId}"
secondaryButtonText Optional - depends on MLP template text For personalisation, use the following format: "Hi ${firstName}, thanks for visiting…". Specifications: 36 characters or less recommended
secondaryButtonTextColor Optional - each template has it's own default value text Indicate the color of the secondary button text. Use a color name(eg. 'red', 'green'), or a hex value(eg. '#F0F8FF')
secondaryButtonBackgroundColor Optional - each template has it's own default value text Indicate the background color of secondary button. Use a color name(eg. 'red', 'green'), or a hex value(eg. '#F0F8FF')
fontFamilyURL1 Optional - each template has it's own default value url Indicate the url of font family, those font family can be used in other property(eg. headlineFontFamily)
fontFamilyURL2 Optional - each template has it's own default value url Indicate the url of font family, those font family can be used in other property(eg. headlineFontFamily)
fontFamilyURL3 Optional - each template has it's own default value url Indicate the url of font family, those font family can be used in other property(eg. headlineFontFamily)
pageTextFontFamily text Specify the font family of page text
headlineFontFamily text Specify the font family of headline text
buttonFontFamily text Specify the font family of button text

Template Catalogue

Name and preview Template ID
7614456e-844f-4d83-bdfe-20c17ce0f97c
f56b5806-f732-4693-b87a-90b66a7d7bfc
c9d7ce1d-20c4-4228-9ba1-6da2a3b4e5e0

Create New Campaign

Mobile Landing Pages Campaigns belonging to the user.Create a new campaign.

Authorizations:
basic_authhmac_auth
Request Body schema: application/json
required

Request body.

template_id
required
string

Template to use for the landing page

parameters
object

Parameters to use for the landing page and the message content

required
object (MessageTemplate)

Responses

Request samples

Content type
application/json
{}

Response samples

Content type
application/json
{
  • "id": "a94041bb-704b-48fa-ba0b-6f1538fc502f",
  • "template_id": "ac895f01-3149-4bf8-a8fe-01d3b8a9ba97",
  • "parameters": {},
  • "message": {
    }
}

Get Campaign

A single campaign, identified by a unique identifier.Returns the details of a single campaign.

Authorizations:
basic_authhmac_auth
path Parameters
id
required
string
Example: 7ca628a8-08b0-4e42-aeb8-960b37049c31

Unique identifier of the campaign.

Responses

Response samples

Content type
application/json
{
  • "id": "a94041bb-704b-48fa-ba0b-6f1538fc502f",
  • "template_id": "ac895f01-3149-4bf8-a8fe-01d3b8a9ba97",
  • "parameters": {},
  • "message": {
    }
}

Send Campaign To Recipients

Sends a campaign message to a group of recipients.

Authorizations:
basic_authhmac_auth
path Parameters
id
required
string
Example: 7ca628a8-08b0-4e42-aeb8-960b37049c31

Unique identifier of the campaign.

Request Body schema: application/json
required

Request body.

required
Array of objects (Recipient)

List of recipients.

Responses

Request samples

Content type
application/json
{
  • "recipients": [
    ]
}

Response samples

Content type
application/json
{
  • "recipients": [
    ]
}

Create a Landing Page

The Landing Page datastore makes it easier to create Campaigns based on the saved data.Create a Landing Page.

Authorizations:
basic_authhmac_auth
Request Body schema: application/json
required

Request body.

name
required
string

Landing Page name. Maximum 100 characters.

template_id
required
string

Template to use for the landing page.

parameters
object

Parameters to use for the landing page and the message content.

fields
object

Define the fields that have been used to the paramters.

Responses

Request samples

Content type
application/json
{
  • "name": " My Landing Page",
  • "template_id": "ac895f01-3149-4bf8-a8fe-01d3b8a9ba97",
  • "parameters": {},
  • "fields": {
    }
}

Response samples

Content type
application/json
{
  • "id": "a94041bb-704b-48fa-ba0b-6f1538fc502f",
  • "name": " My Landing Page",
  • "template_id": "ac895f01-3149-4bf8-a8fe-01d3b8a9ba97",
  • "parameters": {
    },
  • "fields": {
    },
  • "created_timestamp": "2019-11-03T11:49:02.807Z",
  • "modified_timestamp": "2019-11-03T11:49:02.807Z"
}

Get Landing Pages

The Landing Page datastore makes it easier to create Campaigns based on the saved data.Returns a paginated list of Landing Pages for your account. sort_by and sort_direction must both be specified or neither at all (the default sort options are DESCENDING MODIFIED_TIMESTAMP).

Authorizations:
basic_authhmac_auth
query Parameters
page_size
string
Example: page_size=20

Page size between 5 and 100 (default 20)

page_token
string
Example: page_token=eyJwYWdlIjoyfQ

Token to fetch the next page

sort_by
string

Can be CREATED_TIMESTAMP or UPDATED_TIMESTAMP

sort_direction
string

Can be ASCENDING or DESCENDING

Responses

Response samples

Content type
application/json
{ }

Update a Landing Page

The Landing Page datastore makes it easier to create Campaigns based on the saved data.Update a Landing Page.

Authorizations:
basic_authhmac_auth
path Parameters
id
required
string
Example: 7ca628a8-08b0-4e42-aeb8-960b37049c31

Unique identifier of the landing page.

Request Body schema: application/json
required

Request body.

name
string

Landing Page name. Maximum 100 characters.

template_id
string

Template to use for the landing page.

parameters
object

Parameters to use for the landing page and the message content.

fields
object

Define the fields that have been used to the paramters.

Responses

Request samples

Content type
application/json
{}

Response samples

Content type
application/json
{
  • "id": "a94041bb-704b-48fa-ba0b-6f1538fc502f",
  • "name": " My Landing Page",
  • "template_id": "ac895f01-3149-4bf8-a8fe-01d3b8a9ba97",
  • "parameters": {
    },
  • "fields": {
    },
  • "created_timestamp": "2019-11-03T11:49:02.807Z",
  • "modified_timestamp": "2019-11-04T11:49:02.807Z"
}

Delete a Landing Page

The Landing Page datastore makes it easier to create Campaigns based on the saved data.Delete a Landing Page.

Authorizations:
basic_authhmac_auth
path Parameters
id
required
string
Example: 7ca628a8-08b0-4e42-aeb8-960b37049c31

Unique identifier of the landing page.

Responses

Get Campaign Summary

The reporting endpoint provides access to the reporting analytics.

Events Types

The campaign report consists of a series of events, that were generated by recipients when interacting with the generated mobile landing page. The set of events that are currently supported are as follows:

Event Type Event Source Description
PAGE_OPEN n/a The page was opened in a browser.
BUTTON_CLICKED Button label One of the Call to Action buttons was clicked.
FORM_SUBMITTED n/a A form has been submitted with the captured data stored in the 'data' field.

This will contain the following bits of information:

  • The total number of events recorded for the particular campaign.

  • The number of unique engagements. This is the number of recipients for which there exists at least one recorded event.

  • A breakdown of the number of the total number of events grouped by the event type and event source

The event breakdown will return the following information for each event and source type:

  • The total number of recorded events of that type and source

  • The number of unique recipients for which that event and source was recorded for at least once

For example, if a recipient opened the landing page three times, the number of recorded events will be 3 but the number of unique recipients will be 1.

Authorizations:
basic_authhmac_auth
path Parameters
campaign_id
required
string
Example: f56b5806-f732-4693-b87a-90b66a7d7bfc

The campaign ID

Responses

Response samples

Content type
application/json
{
  • "total_events": 24,
  • "unique_engagements": 9,
  • "event_summary": [
    ]
}

Get Campaign Events

The reporting endpoint provides access to the reporting analytics.

Events Types

The campaign report consists of a series of events, that were generated by recipients when interacting with the generated mobile landing page. The set of events that are currently supported are as follows:

Event Type Event Source Description
PAGE_OPEN n/a The page was opened in a browser.
BUTTON_CLICKED Button label One of the Call to Action buttons was clicked.
FORM_SUBMITTED n/a A form has been submitted with the captured data stored in the 'data' field.

At this stage, the events are returned in reverse chronological order.

Authorizations:
basic_authhmac_auth
path Parameters
campaign_id
required
string
Example: f56b5806-f732-4693-b87a-90b66a7d7bfc

The campaign ID

query Parameters
page
number <double>
Example: page=1

The page of results to retrieve. If unspecified, defaults to 0.

page_size
number <double>
Example: page_size=20

The size of each page. Must be between 5 and 100. Defaults to 25.

Responses

Response samples

Content type
application/json
{
  • "events": [
    ],
  • "pagination": {
    }
}

Export Campaign Events Async

The reporting endpoint provides access to the reporting analytics.

Events Types

The campaign report consists of a series of events, that were generated by recipients when interacting with the generated mobile landing page. The set of events that are currently supported are as follows:

Event Type Event Source Description
PAGE_OPEN n/a The page was opened in a browser.
BUTTON_CLICKED Button label One of the Call to Action buttons was clicked.
FORM_SUBMITTED n/a A form has been submitted with the captured data stored in the 'data' field.

At this stage, the events are returned in reverse chronological order.

Authorizations:
basic_authhmac_auth
path Parameters
campaign_id
required
string
Example: f56b5806-f732-4693-b87a-90b66a7d7bfc

The campaign ID

Responses

Get Templates

Returns a paginated list of Template.

Authorizations:
basic_authhmac_auth
query Parameters
page_size
string
Example: page_size=20

Page size between 5 and 100 (default 20)

page_token
string
Example: page_token=eyJwYWdlIjoyfQ

Token to fetch the next page

Responses

Response samples

Content type
application/json
{
  • "templates": [
    ],
  • "pagination": {
    }
}

Get Templates Fields Definition

Returns a list of Template Field Definition.

Authorizations:
basic_authhmac_auth
path Parameters
id
required
string
Example: 7ca628a8-08b0-4e42-aeb8-960b37049c31

Template Id

Responses

Response samples

Content type
application/json
{
  • "fields": {
    }
}
